Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Removal/Installation: Notes

Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] )
Disconnect the negative battery cable.
Remove the MAF/IAT sensor connector.
Remove in the order indicated in the table.

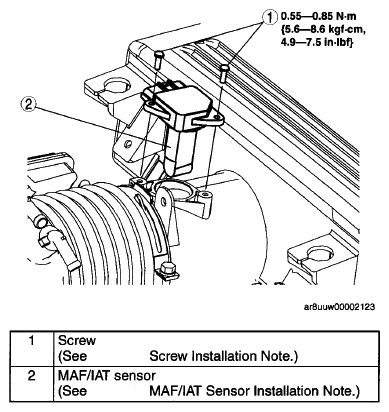

Fig 1: MAF/IAT Sensor Screws With Torque Specifications

G05981134

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
