Circuit Open/Short Inspection

1. Disconnect the PCM connector.
2. Disconnect the SSV switch connector.
3. Inspect the following wiring harnesses for open or short circuit. (Continuity inspection)

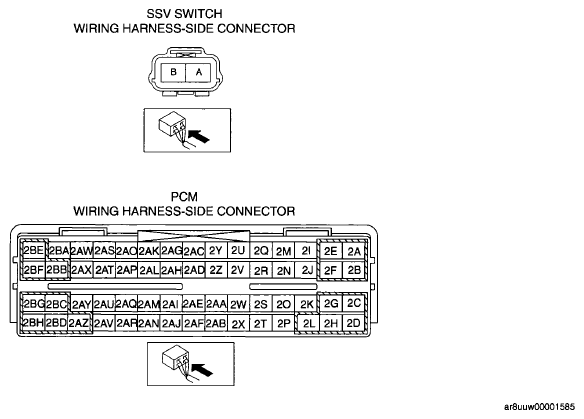

Fig 1: Identifying Secondary Shutter Valve (SSV) Switch And PCM Connector Terminals

Courtesy of MAZDA MOTORS CORP.

Open circuit

• If there is no continuity in the following wiring harnesses, there is an open circuit. Repair or replace the wiring harness.

• SSV switch terminal A and PCM terminal 2AE
• SSV switch terminal B and body ground

Short circuit

• If there is continuity in the following wiring harnesses, there is a short circuit. Repair or replace the wiring harness.

• SSV switch terminal A and body ground
• SSV switch terminal A and power supply
