DTC P0117

DTC P0117 ECT sensor circuit low input
DETECTION CONDITION
  • The PCM monitors the input voltage from the ECT sensor when the engine is running. If the input voltage is less than 0.2 V,  the PCM determines that the ECT sensor circuit input voltage is low.

Diagnostic support note
  • This is a continuous monitor (CCM).
  • The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
  • FREEZE FRAME DATA (Mode 2/Mode 12) is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • Engine overheating
  • ECT sensor connector or terminals malfunction
  • Short to ground in wiring harness between ECT sensor terminal A and PCM terminal 2AH
  • PCM connector or terminals malfunction
  • ECT sensor malfunction
  • PCM malfunction

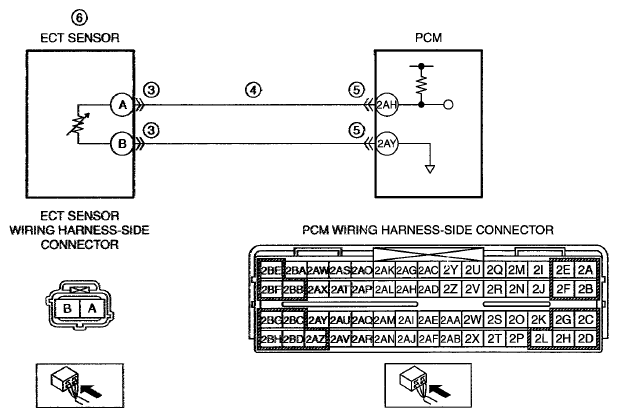

G07878104
DIAGNOSTIC PROCEDURE

STEP INSPECTION ACTION
1 VERIFY FREEZE FRAME DATA (MODE 12) HAS BEEN RECORDED
  • Has the FREEZE FRAME DATA (Mode 12) been recorded?
 Yes Go to the next step.
No Record the FREEZE FRAME DATA (Mode 12) on the repair order, then go to the next step.
2 VERIFY RELATED REPAIR INFORMATION AVAILABILITY
  • Verify related Service Bulletins and/or on-line repair information availability.
  • Is any related repair information available?
 Yes Perform repair or diagnosis according to the available repair information.
  • If the vehicle is not repaired, go to the next step.
No Go to the next step.
3 INSPECT ECT SENSOR CONNECTOR FOR POOR CONNECTION
  • Turn the ignition switch off.
  • Disconnect the ECT sensor connector.
  • Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
  • Is there any malfunction?
 Yes Repair or replace the connector and/or terminals, then go to Step 7.
No Go to the next step.
4 INSPECT ECT SENSOR SIGNAL CIRCUIT FOR SHORT TO GROUND
  • ECT sensor connector is disconnected.
  • Turn the ignition switch off.
  • Inspect for continuity between ECT sensor terminal A (wiring harness-side) and body ground.
  • Is there continuity?
 Yes If the short to ground circuit could be detected:
  • Repair or replace the wiring harness for a possible short to ground.

If the short to ground circuit could not be detected:
Go to Step 7.
No Go to the next step.
5 INSPECT PCM CONNECTOR FOR POOR CONNECTION
  • Turn the ignition switch off.
  • Disconnect the PCM connector.
  • Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
  • Is there any malfunction?
 Yes Repair or replace the connector and/or terminals, then go to Step 7.
No Go to the next step.
6 INSPECT ECT SENSOR
 Yes Replace the ECT sensor, then go to the next step.
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION ).
No Go to the next step.
7 VERIFY TROUBLESHOOTING OF DTC P0117 COMPLETED
  • Make sure to reconnect all disconnected connectors.
  • Clear the DTC from the PCM memory using the M-MDS.

    (See AFTER REPAIR PROCEDURE ).

  • Perform the KOEO or KOER self test.

    (See KOEO/KOER SELF TEST ).

  • Is the same DTC present?
 Yes Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION ).
No Go to the next step.
8 VERIFY AFTER REPAIR PROCEDURE
 Yes Go to the applicable DTC inspection.
(See DTC TABLE ).
No DTC troubleshooting completed.
