DTC P0482

DTC P0482 Cooling fan relay NO. 4 and NO. 5 control circuit problem
DETECTION CONDITION
  • The PCM monitors the cooling fan relay NO. 4/NO. 5 control voltage when the PCM turns the cooling fan relay NO. 4/NO. 5 off. If the control voltage is low, the PCM determines that the cooling fan NO. 4/NO. 5 control circuit voltage is low.
  • The PCM monitors the cooling fan relay NO. 4/NO. 5 control voltage when the PCM turns the cooling fan relay NO. 4/NO. 5 on. If the control voltage is high, the PCM determines that the cooling fan NO. 4/NO. 5 control circuit voltage is high.

Diagnostic support note
  • This is a continuous monitor (other).
  • The MIL does not illuminate.
  • PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA (Mode 2/Mode 12) is not available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • Cooling fan relay NO. 4/NO. 5 terminal malfunction
  • Short to ground or open circuit in cooling fan relay NO. 4/NO. 5 power supply circuit
    • Short to ground in wiring harness between main relay terminal C and cooling fan relay NO. 4 terminal A
    • Short to ground in wiring harness between main relay terminal C and cooling fan relay NO. 5 terminal A
    • Cooling fan relay NO. 4/NO. 5 related fuse malfunction
    • Open circuit in wiring harness between main relay terminal C and cooling fan relay NO. 4 terminal A
    • Open circuit in wiring harness between main relay terminal C and cooling fan relay NO. 5 terminal A
  • Short to ground in wiring harness between cooling fan relay NO. 4 terminal E and PCM terminal 1R
  • Short to ground in wiring harness between cooling fan relay NO. 5 terminal E and PCM terminal 1R
  • Cooling fan relay NO. 4/NO. 5 malfunction
  • PCM connector or terminals malfunction
  • Short to power supply in wiring harness between cooling fan relay NO. 4 terminal E and PCM terminal 1R
  • Short to power supply in wiring harness between cooling fan relay NO. 5 terminal E and PCM terminal 1R
  • Open circuit in wiring harness between cooling fan relay NO. 4 terminal E and PCM terminal 1R
  • Open circuit in wiring harness between cooling fan relay NO. 5 terminal E and PCM terminal 1R
  • PCM malfunction

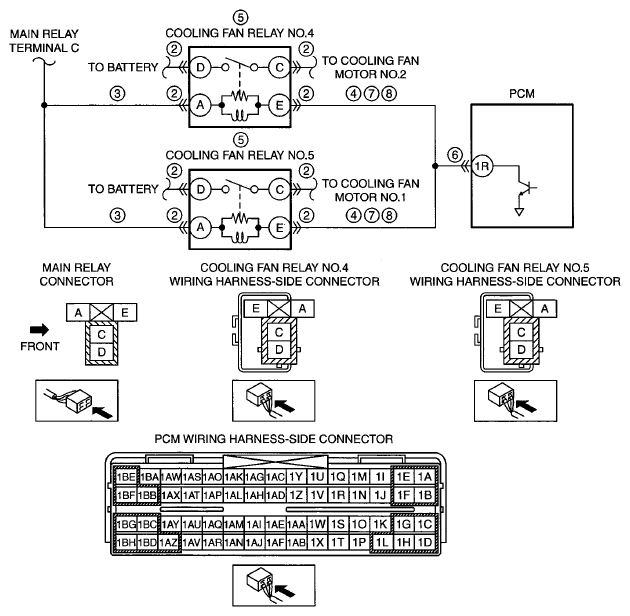

G07878123
DIAGNOSTIC PROCEDURE

STEP INSPECTION ACTION
1 VERIFY RELATED REPAIR INFORMATION AVAILABILITY
  • Verify related Service Bulletins and/or on-line repair information availability.
  • Is any related repair information available?
 Yes Perform repair or diagnosis according to the available repair information.
  • If the vehicle is not repaired, go to the next step.
No Go to the next step.
2 INSPECT COOLING FAN RELAY NO. 4/NO. 5 CONNECTOR FOR POOR CONNECTION
  • Turn the ignition switch off.
  • Remove the cooling fan relay NO. 4/NO. 5.
  • Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
  • Is there any malfunction?
 Yes Repair or replace the terminal, then go to Step 9.
No Go to the next step.
3 INSPECT COOLING FAN RELAY NO. 4/NO. 5 POWER SUPPLY CIRCUIT FOR SHORT TO GROUND OR OPEN CIRCUIT
  • Cooling fan relay NO. 4/NO. 5 relay are removed.
  • Turn the ignition switch to the ON position (engine off).
  • Measure the voltage between the following circuits:
    • Cooling fan relay NO. 4 terminal A (wiring harness-side) and body ground
    • Cooling fan relay NO. 5 terminal A (wiring harness-side) and body ground
  • Is the voltage B+  ?
 Yes Go to the next step.
No Inspect the cooling fan relay NO. 4/NO. 5 related fuse.
  • If the fuse is melt:
    • Repair or replace the wiring harness for a possible short to ground.
    • Replace the fuse.
  • If the fuse is deterioration:
    • Replace the fuse.
  • If the fuse is normal:
    • Repair or replace the wiring harness for a possible open circuit

Go to Step 9.
4 INSPECT COOLING FAN RELAY NO. 4/NO. 5 CONTROL CIRCUIT FOR SHORT TO GROUND
  • Cooling fan relay NO. 4/NO. 5 relay are removed
  • Turn the ignition switch off.
  • Inspect for continuity between the following circuits:
    • Cooling fan relay NO. 4 terminal E (wiring harness-side) and body ground
    • Cooling fan relay NO. 5 terminal E (wiring harness-side) and body ground
  • Is there continuity?
 Yes If the short to ground circuit could be detected:
  • Repair or replace the wiring harness for a possible short to ground.

    If the short to ground circuit could not be detected:

  • Replace the PCM (short to ground in the PCM internal circuit).

    (See PCM REMOVAL/INSTALLATION ).


Go to Step 9.
No Go to the next step.
5 INSPECT COOLING FAN RELAY NO. 4/NO. 5
  • Inspect the cooling fan relay NO. 4/NO. 5.

    (See RELAY INSPECTION ).

  • Is there any malfunction?
 Yes Replace the cooling fan relay NO. 4/NO. 5, then go to Step 9.
(See RELAY LOCATION ).
No Go to the next step.
6 INSPECT PCM CONNECTOR FOR POOR CONNECTION
  • Turn the ignition switch off.
  • Disconnect the PCM connector.
  • Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
  • Is there any malfunction?
 Yes Repair or replace the connector and/or terminals, then go to Step 9.
No Go to the next step.
7 INSPECT COOLING FAN RELAY NO. 4/NO. 5 CONTROL CIRCUIT FOR SHORT TO POWER SUPPLY
  • Cooling fan relay NO. 4/NO. 5 relay are removed and PCM connector is disconnected.
  • Turn the ignition switch to the ON position (engine off).
  • Measure the voltage between the following circuits:
    • Cooling fan relay NO. 4 terminal E (wiring harness-side) and body ground
    • Cooling fan relay NO. 5 terminal E (wiring harness-side) and body ground
  • Is the voltage B+  ?
 Yes Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
No Go to the next step.
8 INSPECT COOLING FAN RELAY NO. 4/NO. 5 CONTROL CIRCUIT FOR OPEN CIRCUIT
  • Cooling fan relay NO. 4/NO. 5 relay are removed and PCM connector is disconnected.
  • Turn the ignition switch off.
  • Inspect for continuity between the following circuits:
    • Cooling fan relay NO. 4 terminal E (wiring harness-side) and PCM terminal 1R (wiring harness-side)
    • Cooling fan relay NO. 5 terminal E (wiring harness-side) and PCM terminal 1R (wiring harness-side)
  • Is there continuity?
 Yes Go to the next step.
No Repair or replace the wiring harness for a possible open circuit, then go to the next step.
9 VERIFY TROUBLESHOOTING OF DTC P0482 COMPLETED
  • Make sure to reconnect all disconnected connectors.
  • Clear the DTC from the PCM memory using the M-MDS.

    (See AFTER REPAIR PROCEDURE ).

  • Perform the KOEO or KOER self test.

    (See KOEO/KOER SELF TEST ).

  • Is the PENDING CODE same as DTC present?
 Yes Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION ).
No Go to the next step.
10 VERIFY AFTER REPAIR PROCEDURE
 Yes Go to the applicable DTC inspection.
(See DTC TABLE ).
No DTC troubleshooting completed.
