DTC P2504

DTC P2504 Charging system voltage high
DETECTION CONDITION
  • The PCM monitors the generator output voltage and the battery voltage when the engine is running. If the generator output voltage is more than 18.4 V or the battery voltage is more than 15.9 V  , the PCM determines that the charging system voltage is high.

Diagnostic support note
  • This is a continuous monitor (other).
  • The MIL does not illuminate.
  • FREEZE FRAME DATA (Mode 2/Mode 12) is not available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • Generator connector or terminals malfunction
  • PCM connector or terminals malfunction
  • Short to power supply in wiring harness between generator terminal 1B and PCM terminal 2AI
  • Generator malfunction
  • PCM malfunction

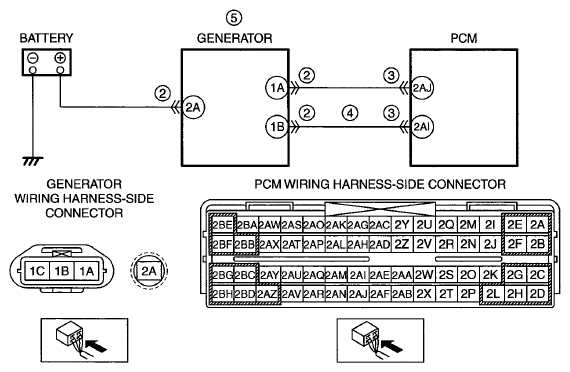

G07878163
DIAGNOSTIC PROCEDURE

STEP INSPECTION ACTION
1 VERIFY RELATED REPAIR INFORMATION AVAILABILITY
  • Verify related Service Bulletins and/or on-line repair information availability.
  • Is any related repair information available?
 Yes Perform repair or diagnosis according to the available repair information.
  • If the vehicle is not repaired, go to the next step.
No Go to the next step.
2 INSPECT GENERATOR CONNECTOR FOR POOR CONNECTION
  • Turn the ignition switch off.
  • Disconnect the generator connector.
  • Inspect for poor connection (such as damaged/pulled-out pins, and corrosion).
  • Is there any malfunction?
 Yes Repair or replace the connector and/or terminals, then go to Step 6.
No Go to the next step.
3 INSPECT PCM CONNECTOR FOR POOR CONNECTION
  • Turn the ignition switch off.
  • Disconnect the PCM connector.
  • Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
  • Is there any malfunction?
 Yes Repair or replace the connector and/or terminals, then go to Step 6.
No Go to the next step.
4 INSPECT GENERATOR CONTROL CIRCUIT FOR SHORT TO POWER SUPPLY
  • Generator and PCM connectors are disconnected.
  • Turn the ignition switch to the ON position (engine off).
  • Measure the voltage between generator terminal 1B (wiring harness-side) and body ground.
  • Is the voltage B+  ?
 Yes Repair or replace the wiring harness for a possible short to power supply, then go to Step 6.
No Go to the next step.
5 INSPECT GENERATOR
 Yes Replace the generator, then go to the next step.
(See GENERATOR REMOVAL/INSTALLATION [13B-MSP] ).
No Go to the next step.
6 VERIFY TROUBLESHOOTING OF DTC P2504 COMPLETED
  • Make sure to reconnect all disconnected connectors.
  • Clear the DTC from the PCM memory using the M-MDS.

    (See AFTER REPAIR PROCEDURE ).

  • Perform the KOER self test.

    (See KOEO/KOER SELF TEST ).

  • Is the same DTC present?
 Yes Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION
No Go to the next step.
7 VERIFY AFTER REPAIR PROCEDURE
 Yes Go to the applicable DTC inspection.
(See DTC TABLE ).
No DTC troubleshooting completed.
