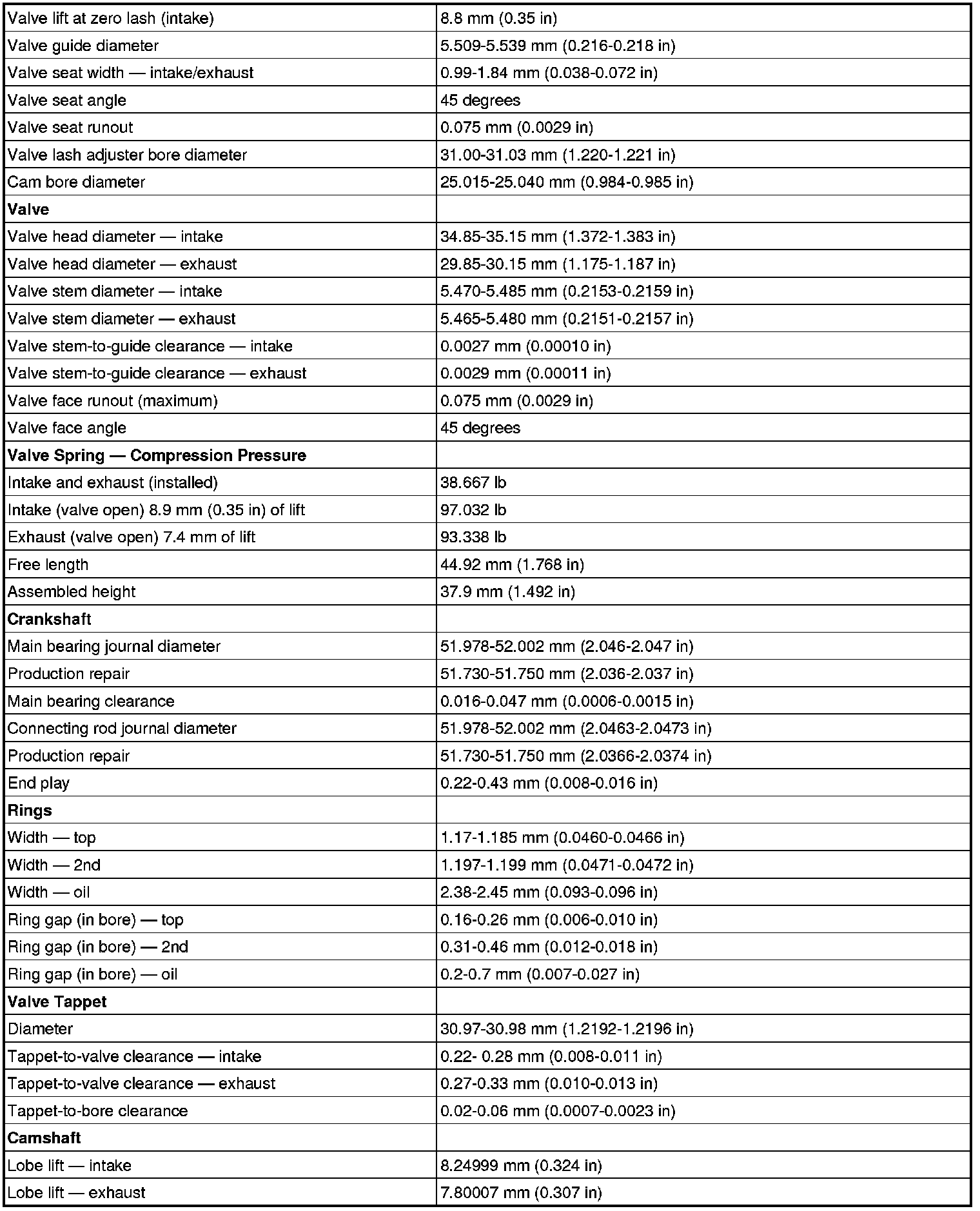

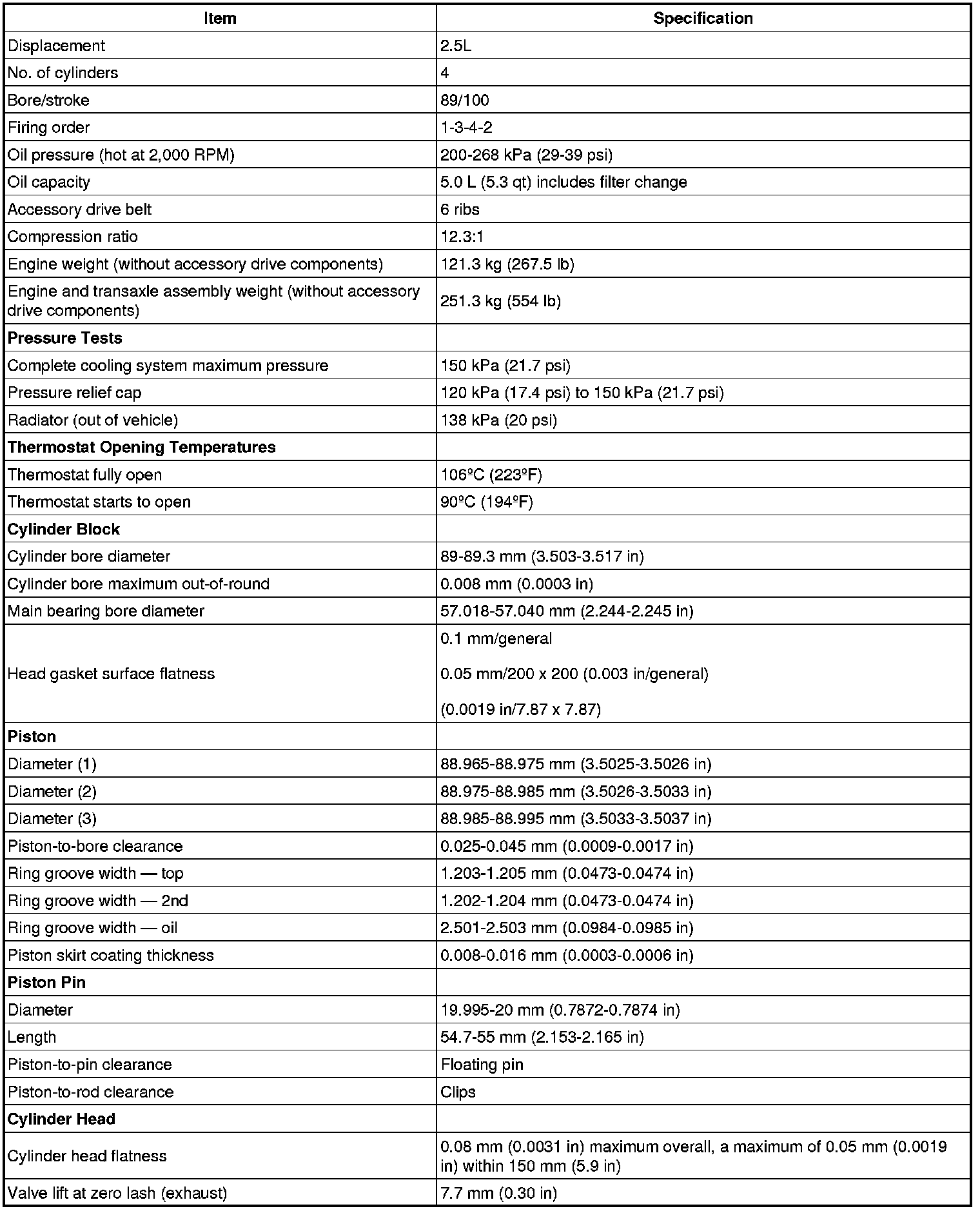

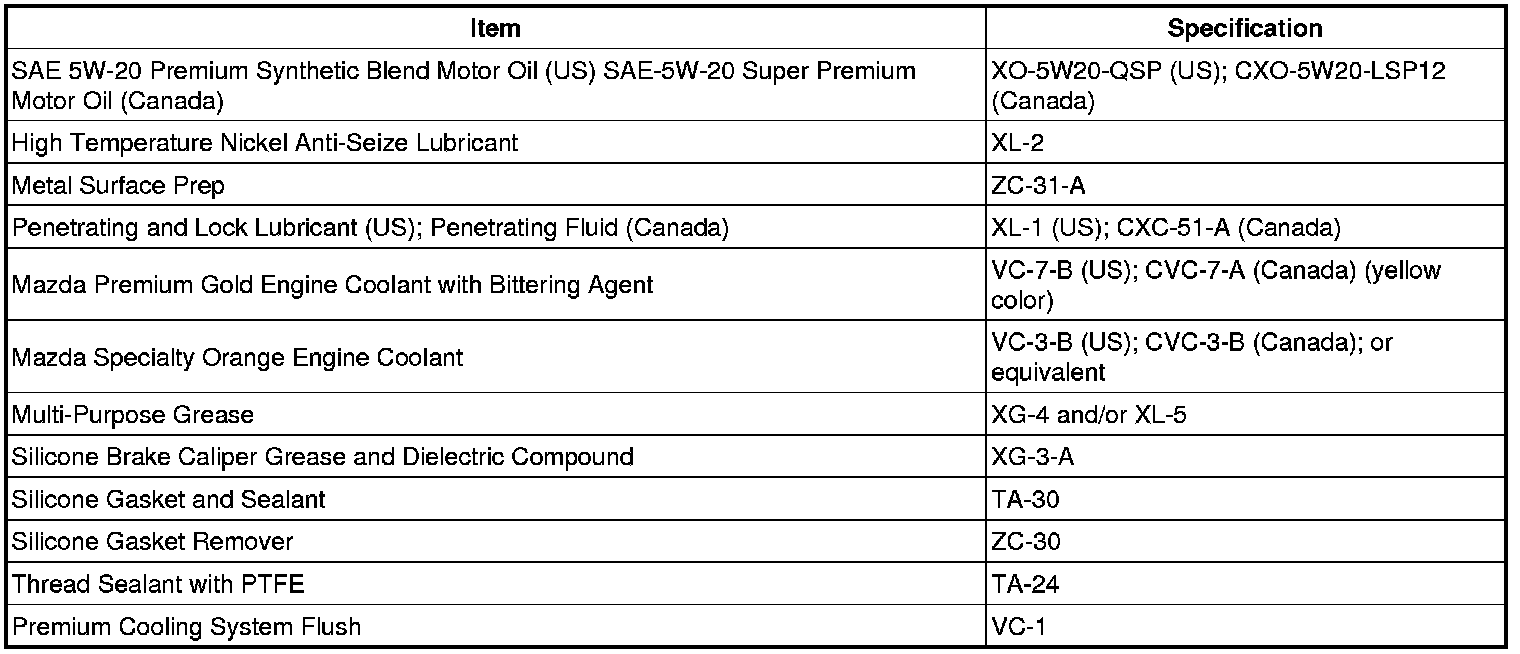

Engine Technical Data




SPECIFICATIONS - HYBRID

General Specifications





Traction Battery Specifications





High-Voltage Converter/Inverter





Hybrid Engine
