Power Mirror Switch: Service and Repair

EXTERIOR MIRROR CONTROL SWITCH REMOVAL/INSTALLATION

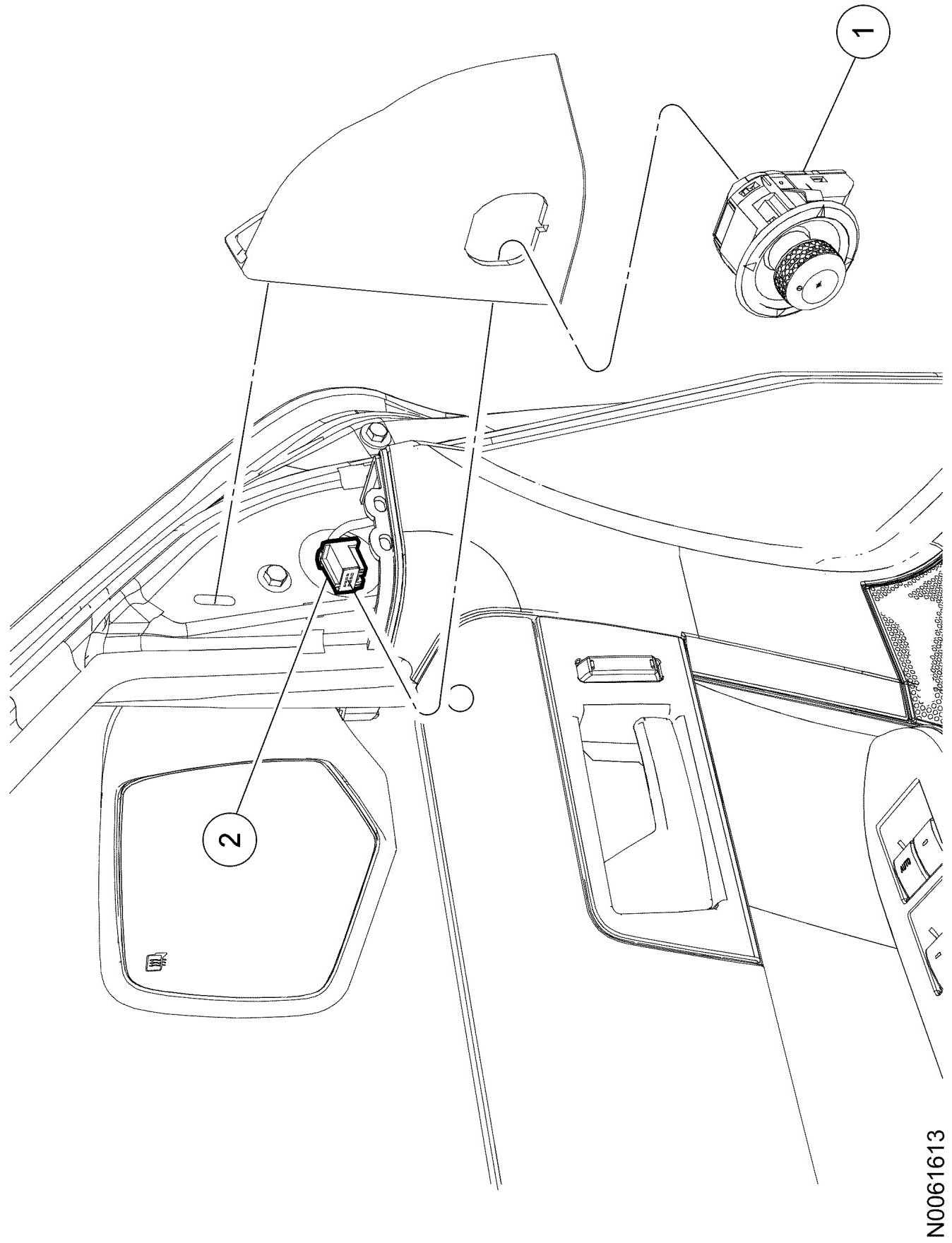

1. Remove the LH sail panel.

- Disconnect the electrical connector.

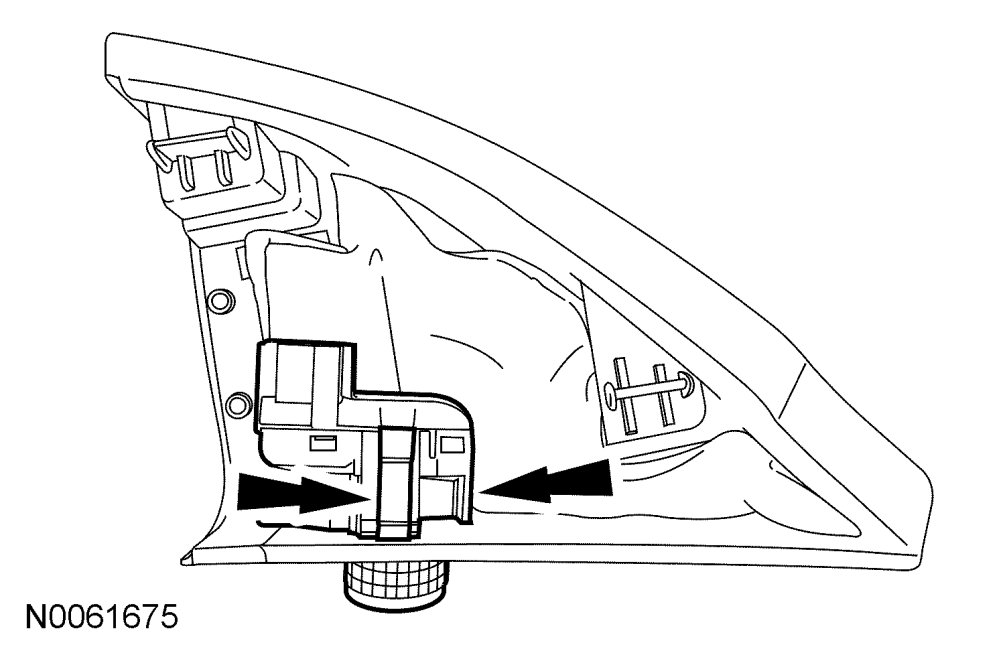

2. Remove the exterior mirror control switch.

- Press the 2 retaining tabs.

3. To install, reverse the removal procedure.
