Component Test - Window Control Switch - Driver Side

Remove the window control switch. See WINDOW CONTROL SWITCH REMOVAL/INSTALLATION .

Inspect for continuity between the window control switch terminals using a self-powered test light or an ohm meter.

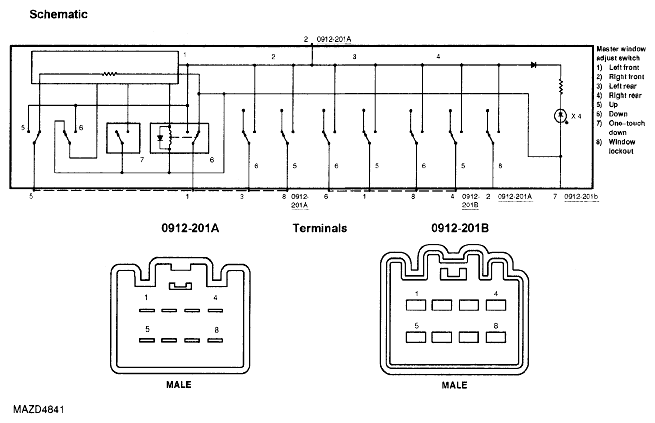

Fig 1: Window Control Switch Schematic With Terminals (Driver Side)

G05466037

Courtesy of MAZDA MOTORS CORP.

TERMINALS REFERENCE

Circuit to Test	Connect Self-Powered Test Light or Ohmmeter to Terminals	Move Switch to These Positions	A Good Switch Will Indicate
Switch Lock	2 (0912-201 a) and 1 (0912-201 b)	Unlock Lock	Closed circuit Open circuit
Left front window circuit	2 (0912-201 a) and 5 (0912-201 a)	Up	Closed circuit
Right front window circuit	2 (0912-201 a) and 3 (0912-201 a) 2 (0912-201 a) and 8 (0912-201 a) 7 (0912-201 b) and 8 (0912-201 a) 7 (0912-201 b) and 3 (0912-201 a)	Down Up Rest	Closed circuit Closed circuit Closed circuit
Left rear window circuit	2 (0912-201 a) and 1 (0912-201 b) 2 (0912-201 a) and 6 (0912-201 b) 7 (0912-201 b) and 1 (0912-201 b) 7 (0912-201 b) and 8	Up Down Rest	Closed circuit Closed circuit Closed circuit
Right rear window circuit	2 (0912-201 a) and 8 (0912-201 b) 2 (0912-201 a) and 4 (0912-201 b) 7 (0912-201 b) and 8 (0912-201 b) 7 (0912-201 b) and 4 (0912-201 b)	Up Down Rest	Closed circuit Closed circuit Closed circuit
