Powertrain Control Module (Pcm) Removal/Installation - Hybrid: Notes

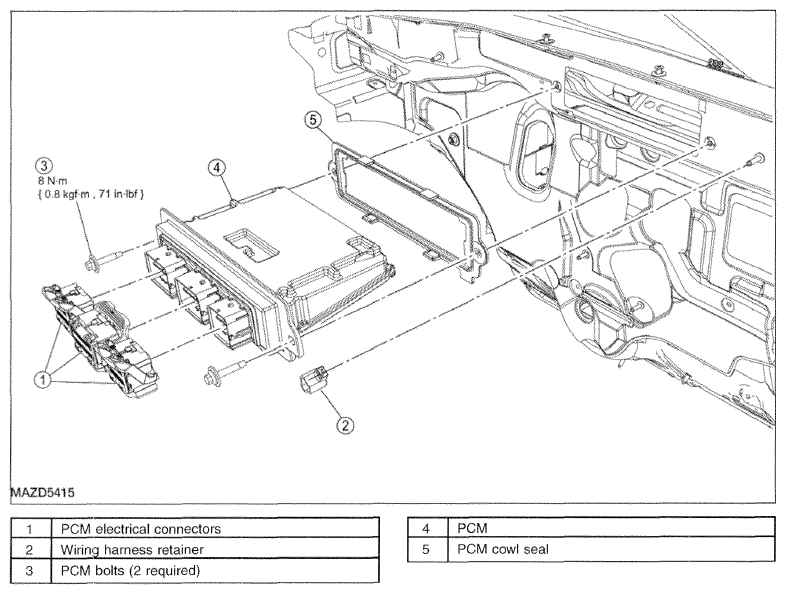

Fig 1: Powertrain Control Module (PCM) Replacement Components With Torque Specifications (Hybrid)
G07434970Courtesy of MAZDA MOTORS CORP.
