Overhaul

COMBINATION SWITCH DISASSEMBLY/ASSEMBLY

1. Disconnect the negative battery cable and wait 1 min or more.

2. Remove the following parts:
a. Driver-side air bag module Driver-Side Air Bag Module Removal/Installation

b. Steering wheel Service and Repair

c. Column cover Service and Repair

d. Clock spring Service and Repair

3. Remove the combination switch. Removal and Replacement

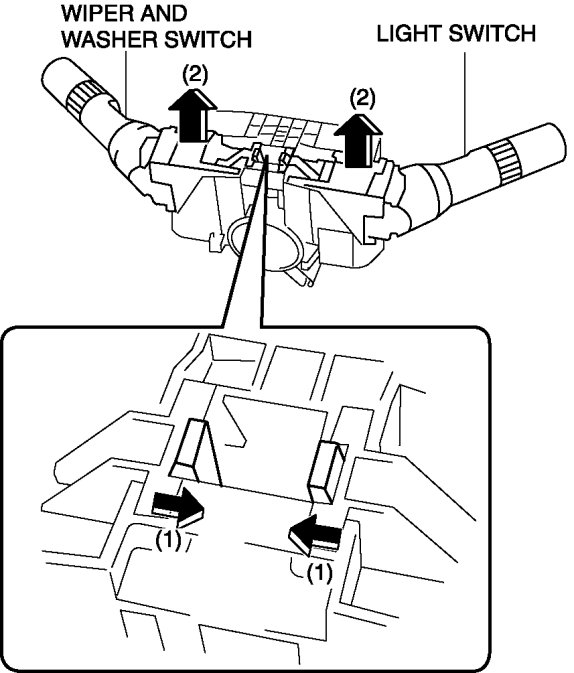

4. Press the tabs in the direction of the arrow (1) shown in the figure, then remove the light switch, and the wiper and washer switch






5. Assemble in the reverse order of disassembly.
