Auxiliary Power Outlet: Service and Repair

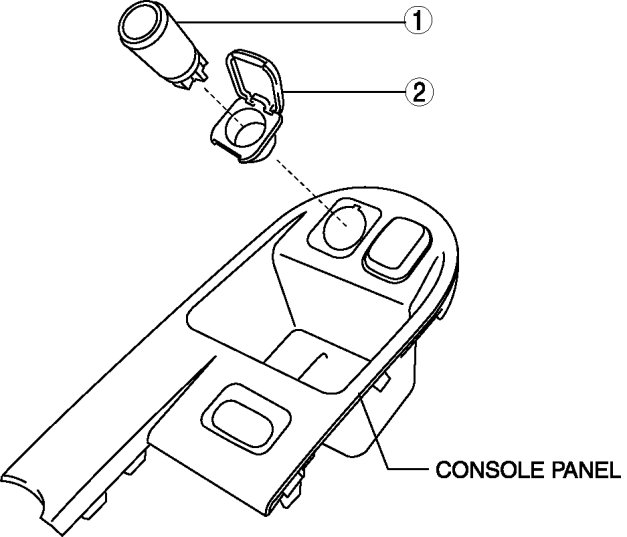

ACCESSORY SOCKET REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the console panel. Rear Console Removal/Installation

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

Accessory Socket Removal Note

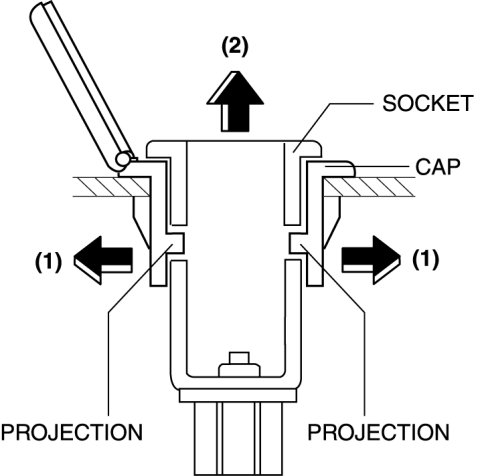

1. Remove the socket in the direction of the arrow (2) shown in the figure while opening the caps in the direction of the arrow (1) using a tape-wrapped fastener remover.






Cap Removal Note

1. Remove the cap in the direction of the arrow (2) shown in the figure while pressing the cap tabs in the direction of the arrow (1).
