Steering Mounted Controls Assembly: Testing and Inspection

AUDIO CONTROL SWITCH INSPECTION

1. Disconnect the negative battery cable and wait for 1 min or more.

2. Remove the driver-side air bag module. Driver-Side Air Bag Module Removal/Installation

3. Disconnect the clock spring connector.

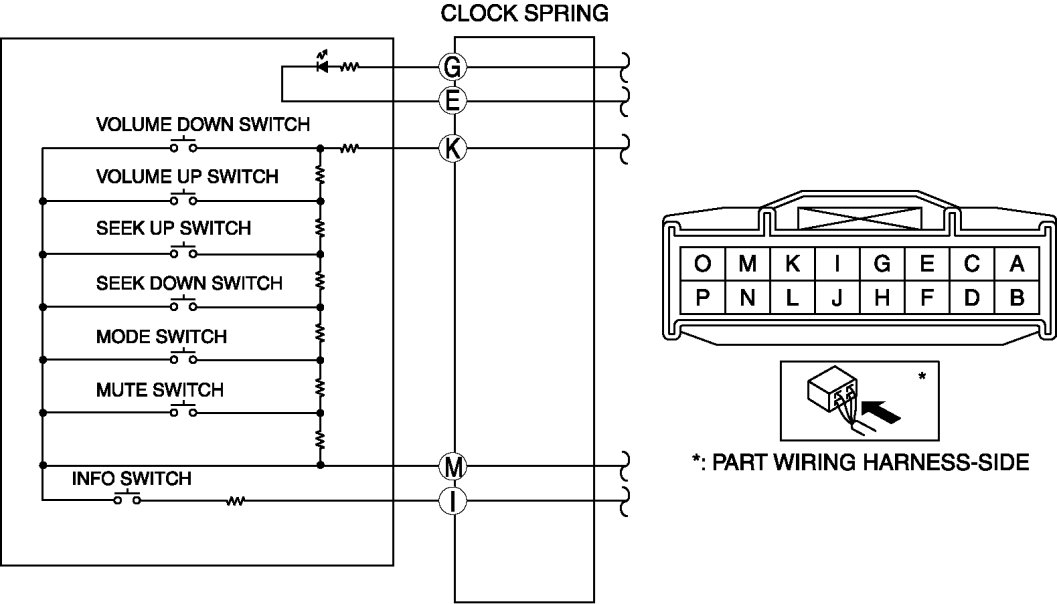

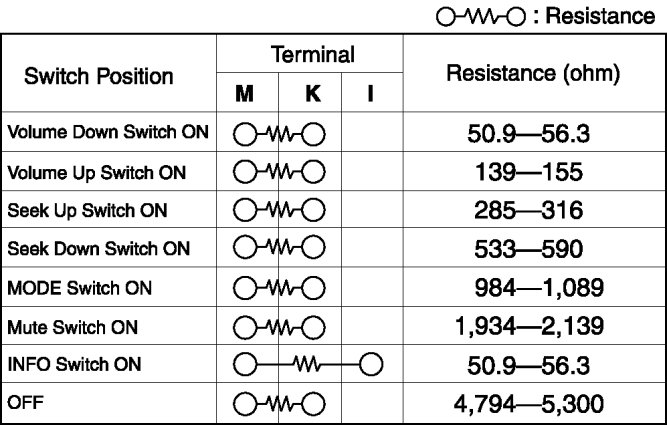

4. Inspect for resistance and continuity between clock spring connector terminals M-K/I using a tester.






- If not within the specification, replace the audio control switch.

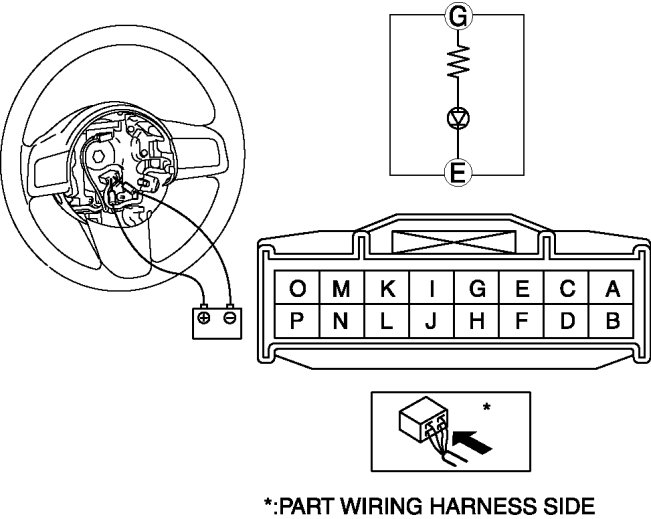

5. Apply battery positive voltage to audio control switch terminal G, and connect terminal E to ground.






6. Verify that the LED illuminates.

- If the LED does not illuminate, replace the audio control switch.
