Rear Power Window Regulator Removal/Installation

To access the glass installation bolt, adjust the position of the rear door glass that the height of the rear door glass towards the front is approx. 200 mm {7.87 in} .

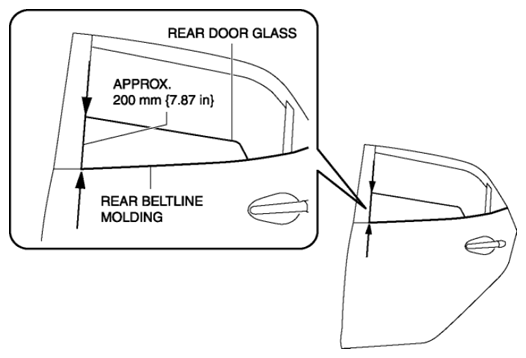

Fig 1: Rear Door Glass To Adjustment Height
Disconnect the negative battery cable.
Remove the following parts:
1. Sail inner garnish (See SAIL INNER GARNISH REMOVAL/INSTALLATION .)
2. Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
3. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
4. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
5. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
Remove the nuts.

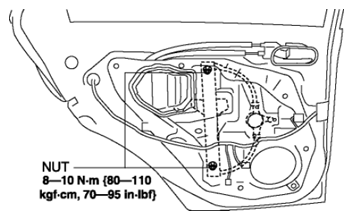

Fig 2: Rear Power Window Regulator Nuts With Torque Specifications
Insert your hand through the rear door speaker installation hole, rotate the drum housing in the direction shown in the figure and disengage the tabs from the rear door module panel.

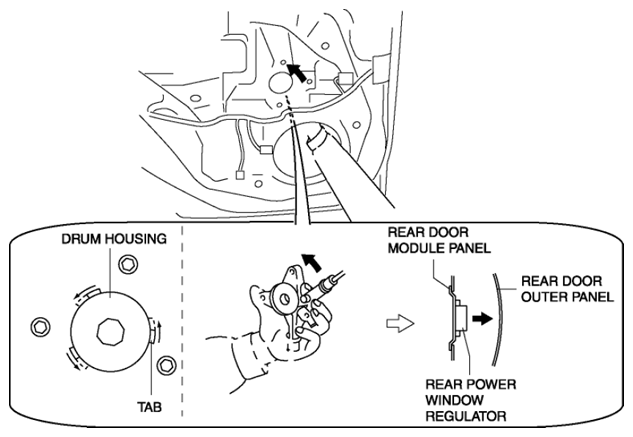

Fig 3: Disengaging Tabs From Rear Door Module Panel
Remove the rear power window regulator from the rear speaker installation hole.

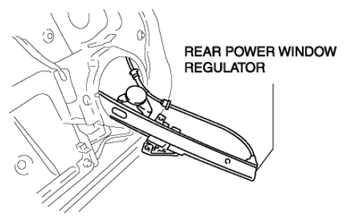

Fig 4: Rear Power Window Regulator And Rear Speaker Hole
Install in the reverse order of removal.
CAUTION:
- When installing, do not allow the cable to come out from the drum housing.
