Brake Fluid Pressure Sensor Inspection
- Switch the ignition to off.

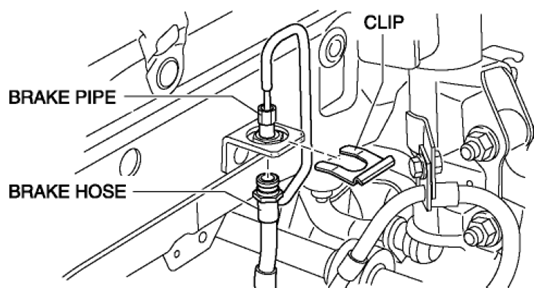

- Disconnect the brake pipe flare nut.
- Remove the clip and disconnect the brake hose.

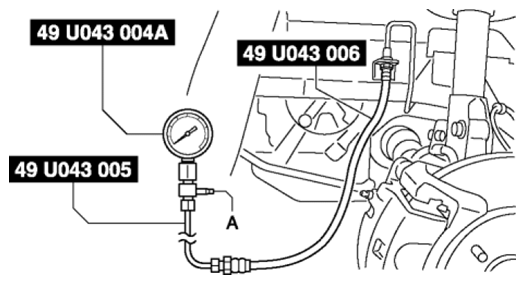

- Install the SSTs
to the brake pipe as shown in the figure.
- Perform air bleeding of the SST
and brake line from bleeder screw A.
- Connect the M-MDS to the DLC-2.
- Select the "MCYLI_P" PID. (See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)]
.)
- Start the engine.
- Depress the brake pedal, and verify that the fluid pressure value of the SST
(gauge) and the value shown on the M-MDS are equal.
- Remove the SSTs
after the inspection and install the brake hose, clip and brake pipe to their original positions. (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION
.)
- Perform air bleeding of the brake line. (See BRAKE FLUID AIR BLEEDING
.)
