2 Touring, 1.5L Eng VIN Y, Automatic Trans
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belt System
>>
Location Index
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Location Index

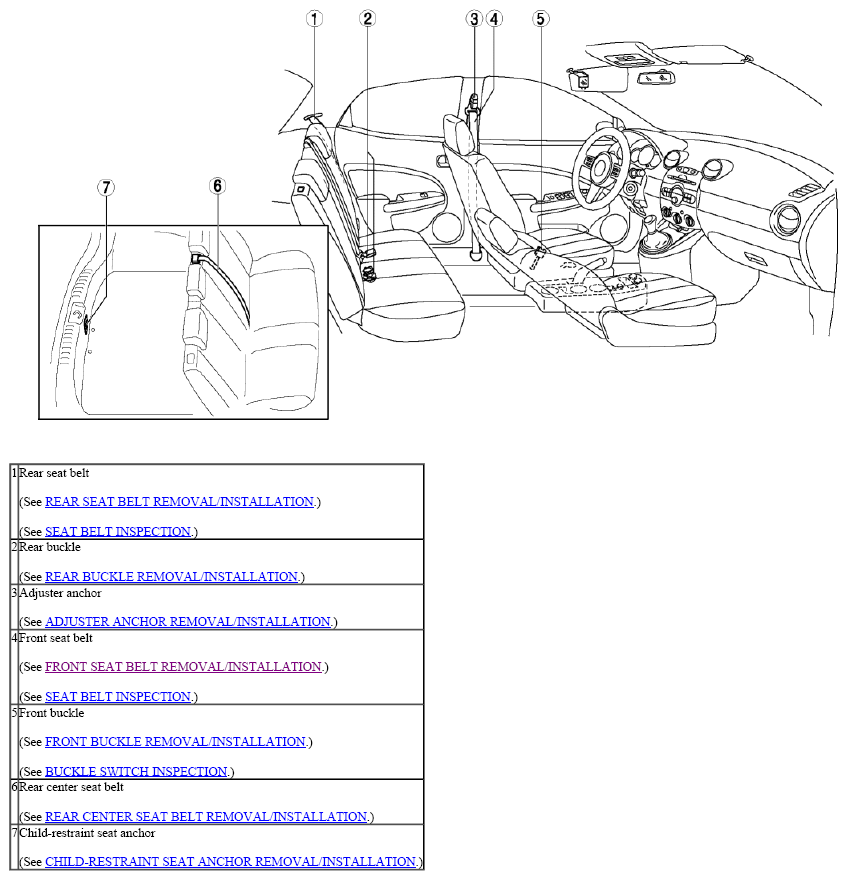

Fig 1: Identifying Seat Belt System Components Location
