Selector Cable Installation Note

  1. Working with two people, one person pushes the ends of the selector cable toward the lower side of the vehicle from the inside, and at the same time, the other person pulls the ends of the selector cable.

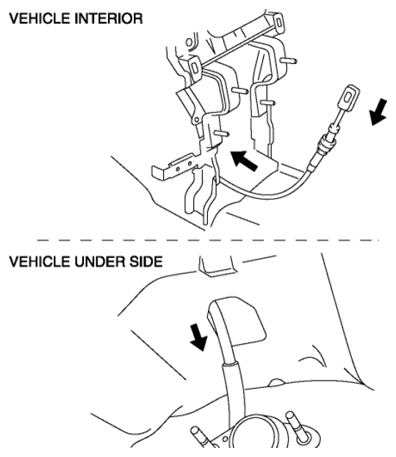

    Fig 1: Selector Cable Routing
    G08095939
