DSC Off Switch Removal/Installation

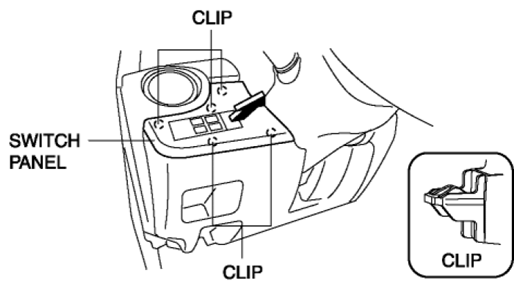

  1. Remove the switch panel in the direction of the arrow shown in the figure.
    Fig 1: Switch Panel
    G08095846
  2. Disconnect the connector.

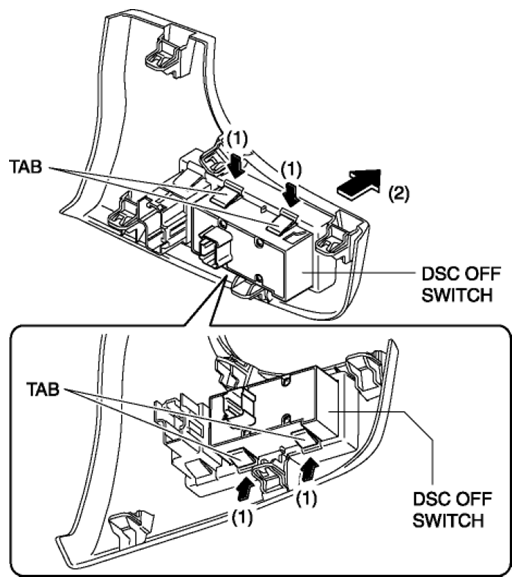

  3. Press the tabs in the direction of the arrow (1) shown in the figure and remove the DSC OFF switch in the direction of the arrow (2).
    Fig 2: Pressing DSC OFF Switch Tabs
    G08095847
  4. Install in the reverse order of removal.
