Front ABS Wheel-Speed Sensor Removal Note

Remove the brake hose installation bolt shown in the figure, then remove the brake hose bracket from the shock absorber.

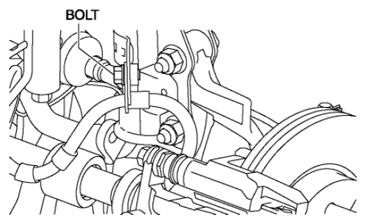

Fig 1: Brake Hose Bolt
Remove the ABS wheel-speed sensor installation bolt, then remove the ABS wheel-speed sensor from the steering knuckle.
Remove the bolts and nuts shown in the figure, then disconnect the steering knuckle from the shock absorber.

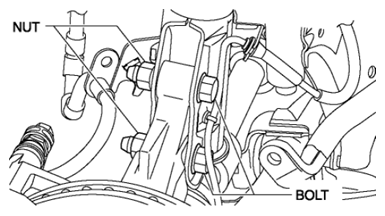

Fig 2: Steering Knuckle Bolts And Nuts
While pressing the tabs (2 locations) of the ABS wheel-speed sensor wiring harness clip (shock absorber side), remove the ABS wheel-speed sensor wiring harness from the shock absorber.

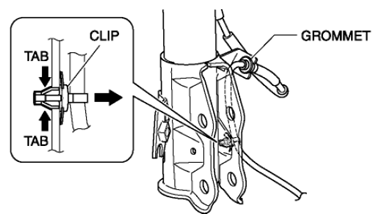

Fig 3: ABS Wheel-Speed Sensor Wiring Harness At Shock Absorber
Remove the ABS wheel-speed sensor wiring harness grommet from the shock absorber.
Remove the ABS wheel-speed sensor.
Install the steering knuckle to the shock absorber, insert the bolts from the direction shown as follows, then tighten them to the specified torque.

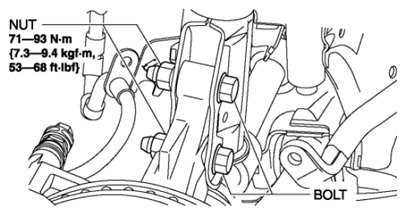

Fig 4: Steering Knuckle Bolts And Nuts With Torque Specification
- Vehicle left side: Insert the bolts from the vehicle rear.
- Vehicle right side: Insert the bolts from the vehicle front.
Install the brake hose bracket to the shock absorber, then tighten the bolt to the specified torque.

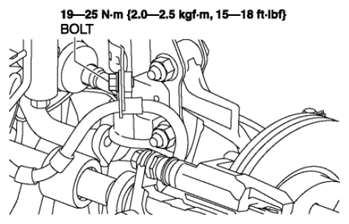

Fig 5: Brake Hose Bracket Bolt With Torque Specification
