Outer Power Mirror Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Disconnect the power outer mirror connector.

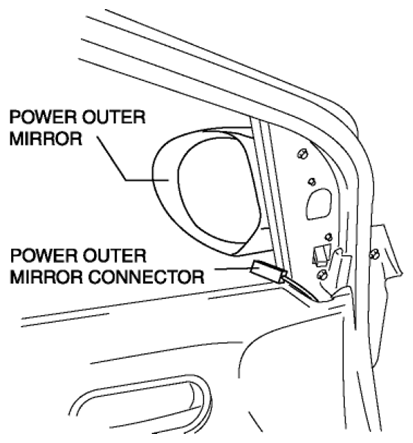

    Fig 1: Identifying Power Outer Mirror And Connector
    G08107983
  4. Remove the bolts.

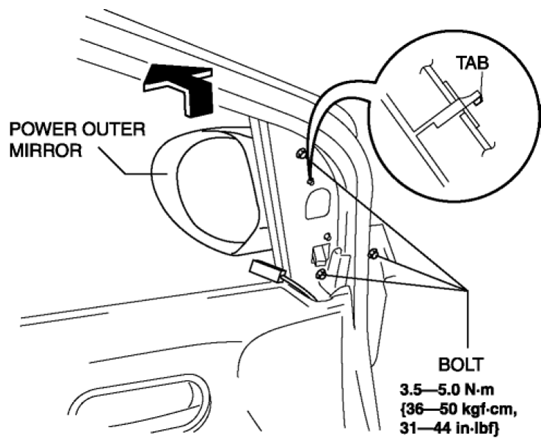

    Fig 2: Power Outer Mirror, Connector And Bolts With Torque Specifications
    G08107984
  5. Remove the power outer mirror by pulling it in the direction of the arrow shown in the figure to release the tab.
  6. Install in the reverse order of removal.
