Power Seat Switch: Testing and Inspection

POWER SEAT SWITCH INSPECTION

1. Remove the battery cover. Removal and Replacement Removal and Replacement Removal and Replacement

2. Disconnect the negative battery cable and wait 1 min or more. Removal and Replacement Removal and Replacement Removal and Replacement

3. Disconnect the power seat switch connector.

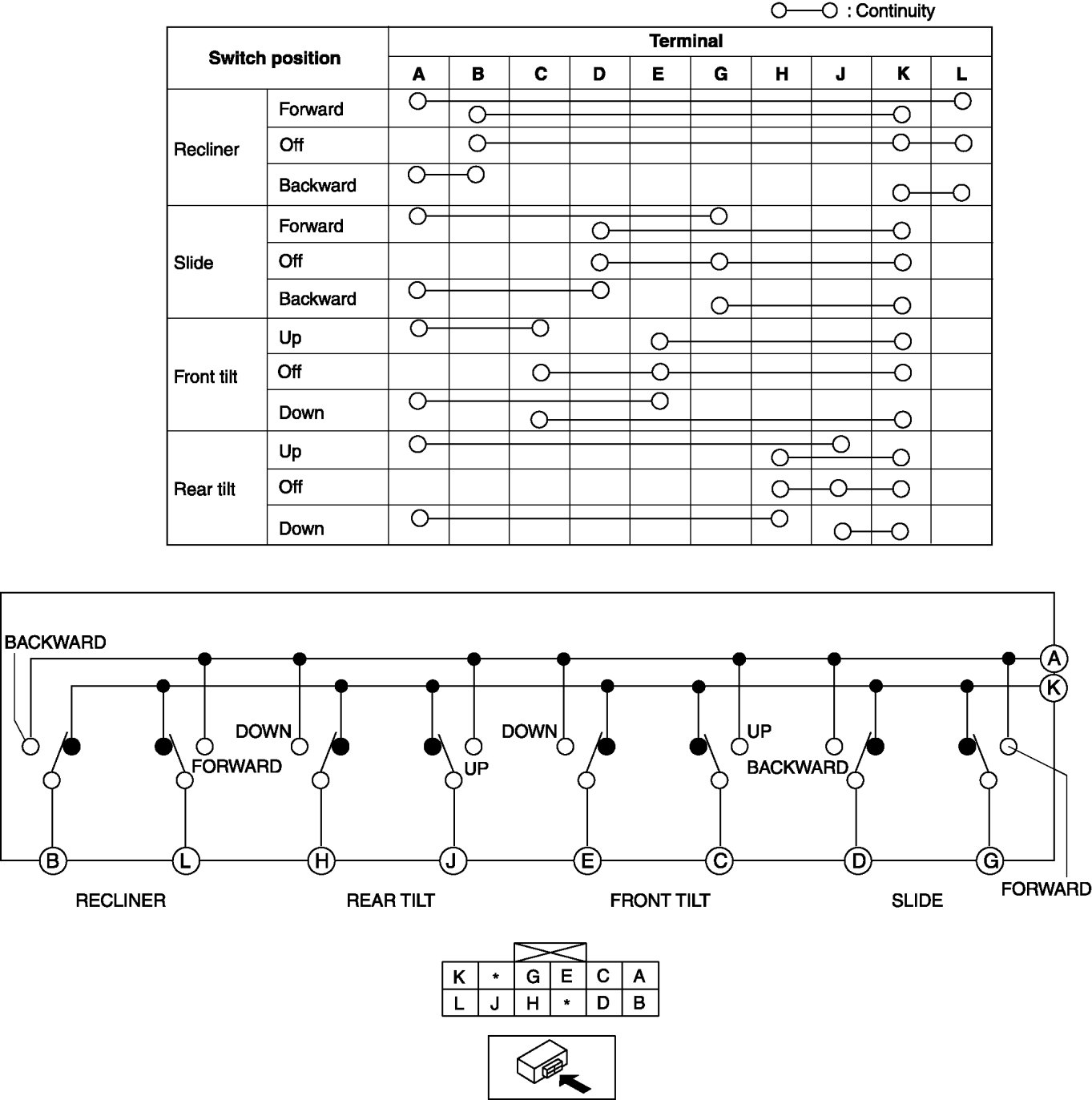

4. Inspect for continuity between the power seat switch connector terminals using an ohmmeter.

- If not as specified, replace the power seat switch.
