Disc Pad (Front) Replacement





DISC PAD (FRONT) REPLACEMENT [MZR 2.0, SKYACTIV-G 2.0, MZR 2.5]

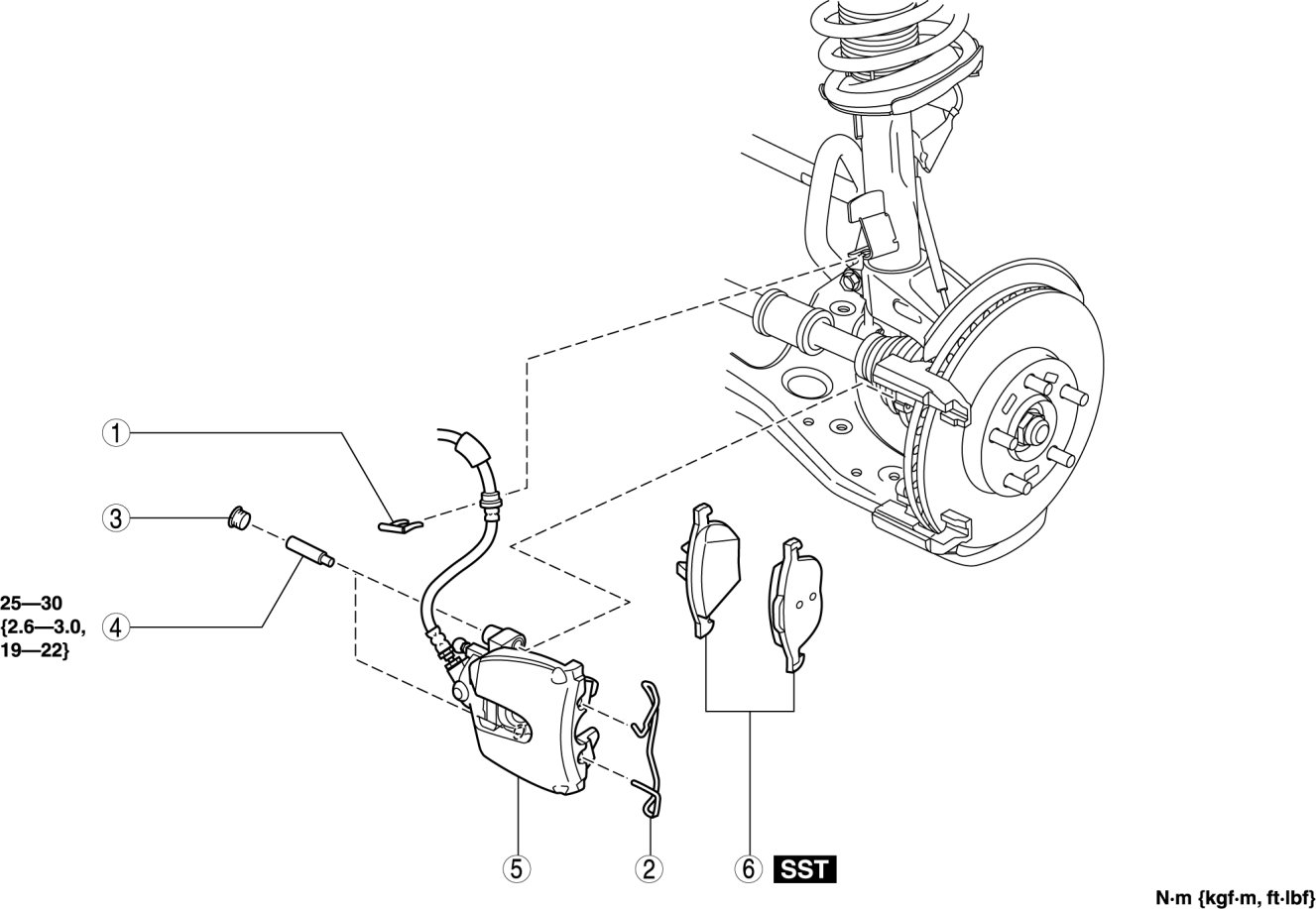

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. After installation, pump the brake pedal a few times and verify that the brakes do not drag.
