Cabin Temperature Sensor / Switch: Service and Repair

PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Front scuff plate Front Scuff Plate Removal/Installation

b. Front side trim Front Side Trim Removal/Installation

c. Dashboard under cover Dashboard Under Cover Removal/Installation

d. Upper panel Upper Panel Removal/Installation

e. Shift lever knob (MTX) Manual Transaxle Shift Mechanism Removal/Installation [G35M-R] Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]

f. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

g. Shift panel Shift Panel Removal/Installation

h. Side wall Side Wall Removal/Installation

i. Console Console Removal/Installation

j. Hood release lever Service and Repair

k. Lower panel (driver-side) Lower Panel Removal/Installation

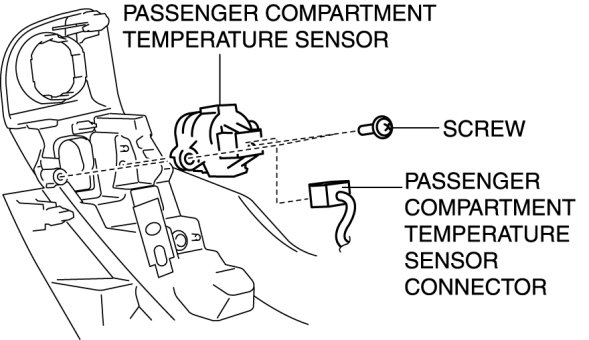

3. Disconnect the passenger compartment temperature sensor connector.






4. Remove the screw.

5. Remove the passenger compartment temperature sensor.

6. Install in the reverse order of removal.
