Air Bag Control Module: Testing and Inspection

SAS CONTROL MODULE CONFIGURATION

NOTE:
- Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the SAS CONTROL MODULE CONFIGURATION.

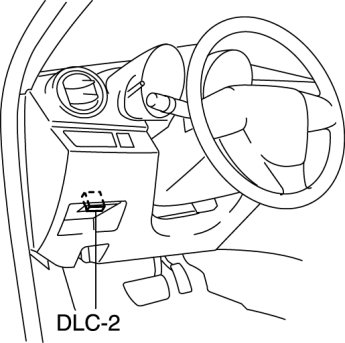

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the IDS.
a. Select "Module Programming".

b. Select "Programmable Module Installation".

c. Select "RCM".

3. Perform the configuration according to the directions on the screen.

4. Retrieve DTCs by the M-MDS, then verify that there is no DTC present.

5. If a DTC (s) is detected, perform the applicable DTC inspection. Standard Deployment Control System Two-Step Deployment Control System
