Washer Fluid Level Switch: Service and Repair

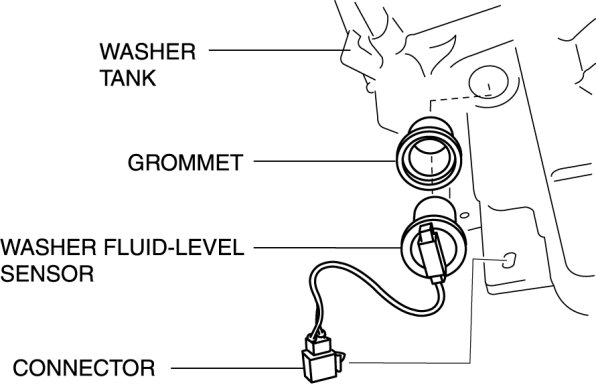

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the front bumper. Front Bumper Removal/Installation

3. Remove the washer tank. Service and Repair

4. Remove the connector of the washer fluid-level sensor from the washer tank.






5. Remove the washer fluid-level sensor.

6. Remove the grommet.

7. Install in the reverse order of removal.
