Keyless Control Module Removal/Installation

If the keyless control module is replaced, always perform the following procedure.
- Vehicles with immobilizer system
  - Keyless Control Module Configuration (See KEYLESS CONTROL MODULE CONFIGURATION .)
  - Immobilizer System-related Parts Programming [No.4 Programming Procedure Due to Keyless Control Module Replacement] (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
- Vehicles without immobilizer system
  - Keyless Control Module Configuration (See KEYLESS CONTROL MODULE CONFIGURATION .)
  - Advanced Key Id Code Registration (See ADVANCED KEY ID CODE REGISTRATION .)
  - Steering Lock Unit Id Code Registration (See TRANSMITTER ID CODE REGISTRATION .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
- Remove the following parts:
  1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  3. Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  4. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
- Remove in the nuts.

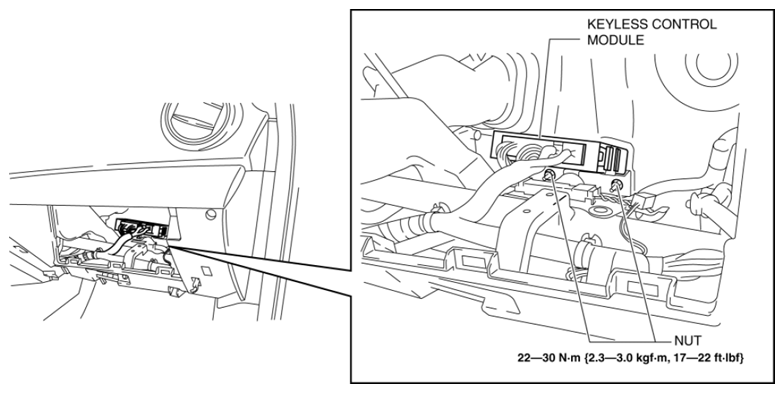

  Fig 1: Locating Keyless Control Module And Nuts With Torque Specification
- Disconnect the connector.

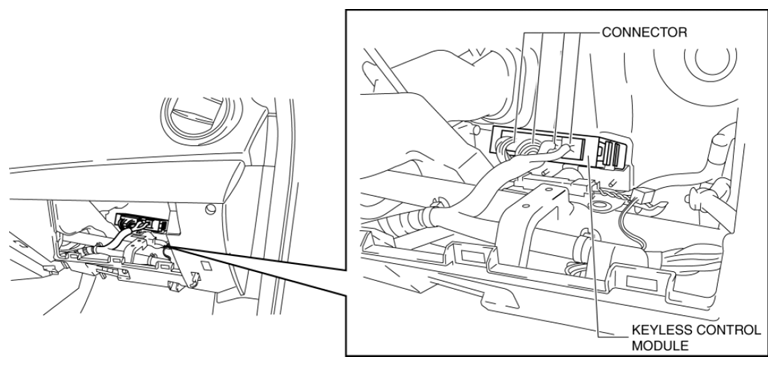

  Fig 2: Identifying Keyless Control Module And Connector
- Remove the keyless control module.
- Install in the reverse order of removal.
