Two-Step Deployment Control System

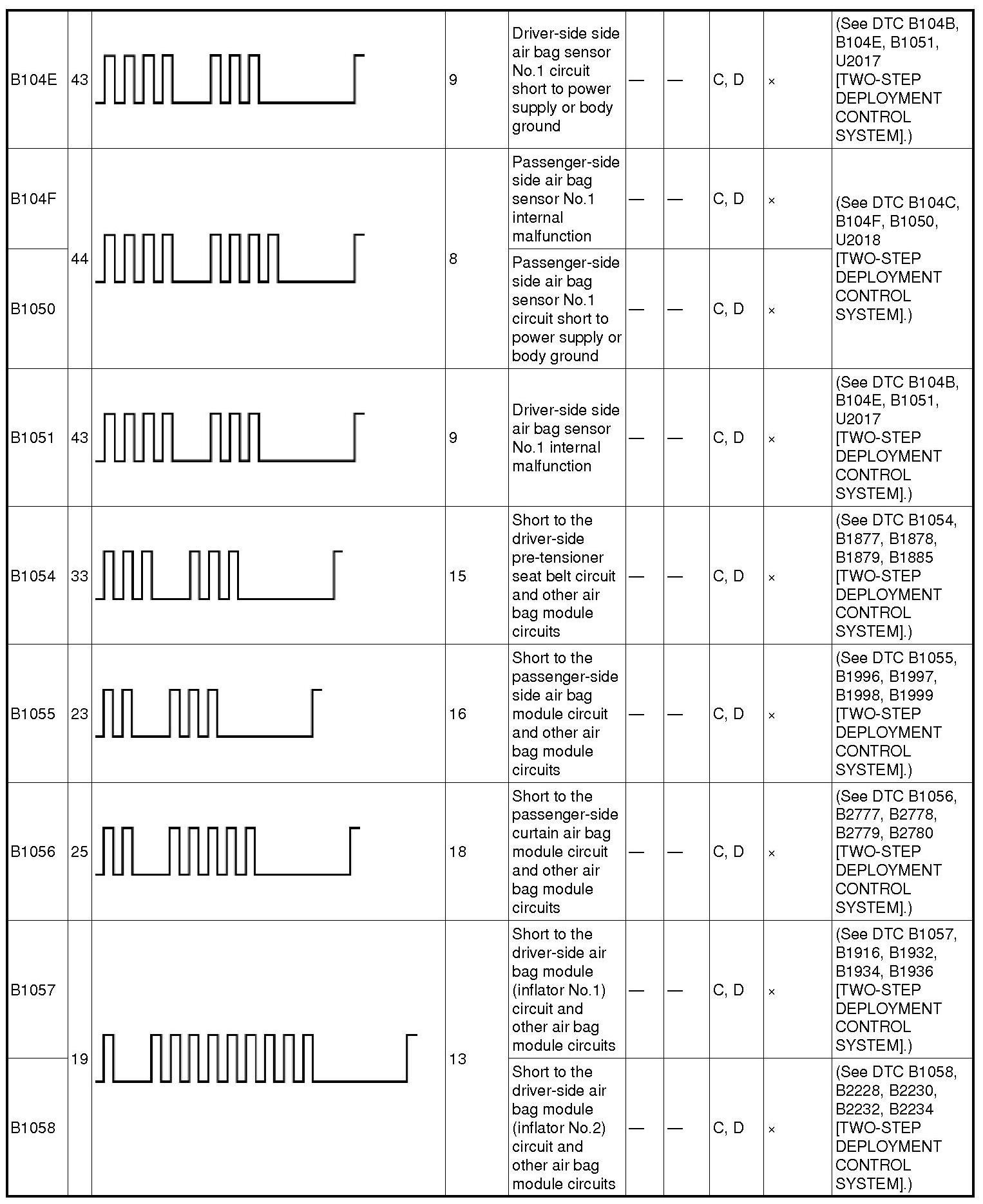

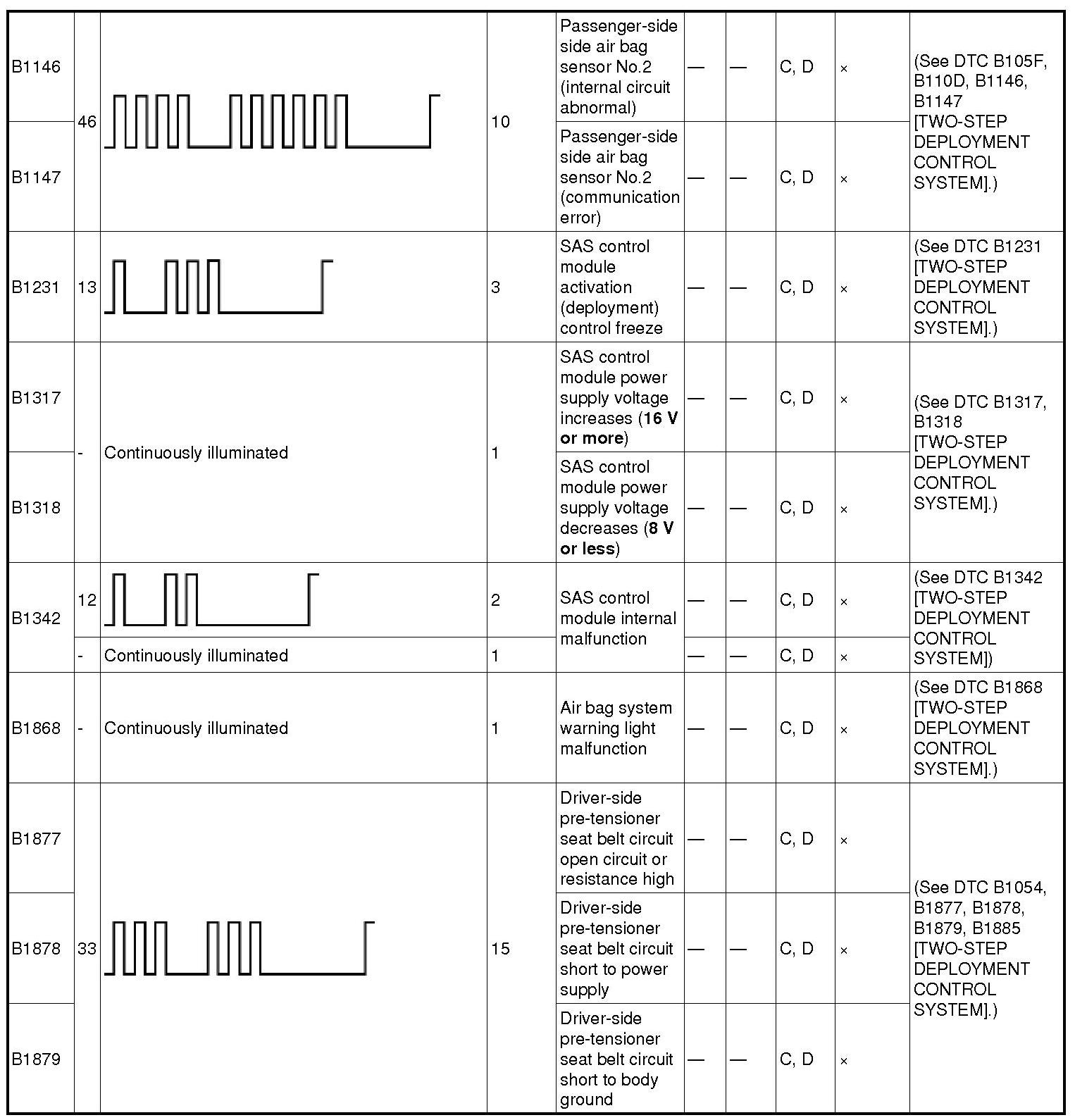

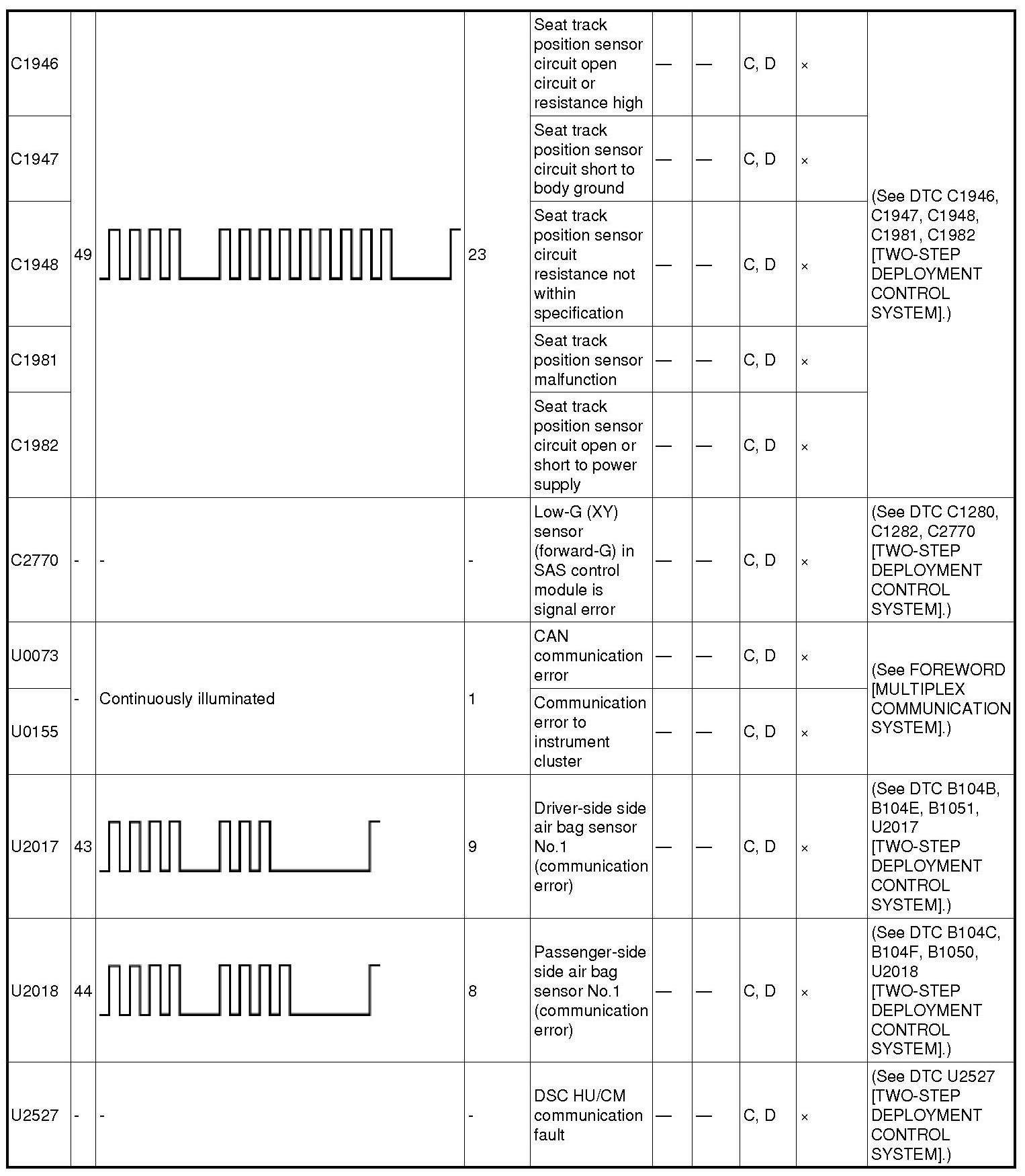

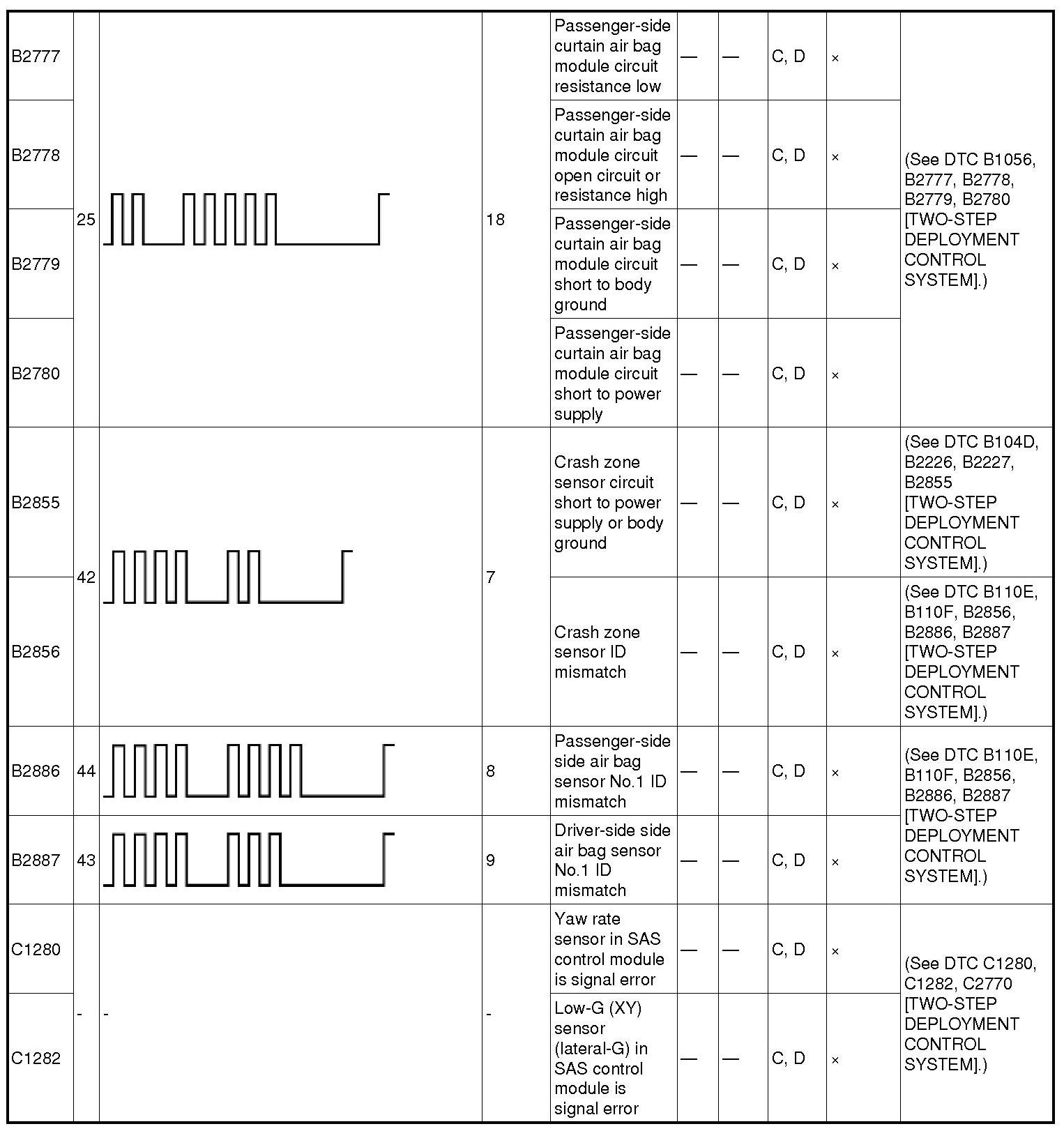

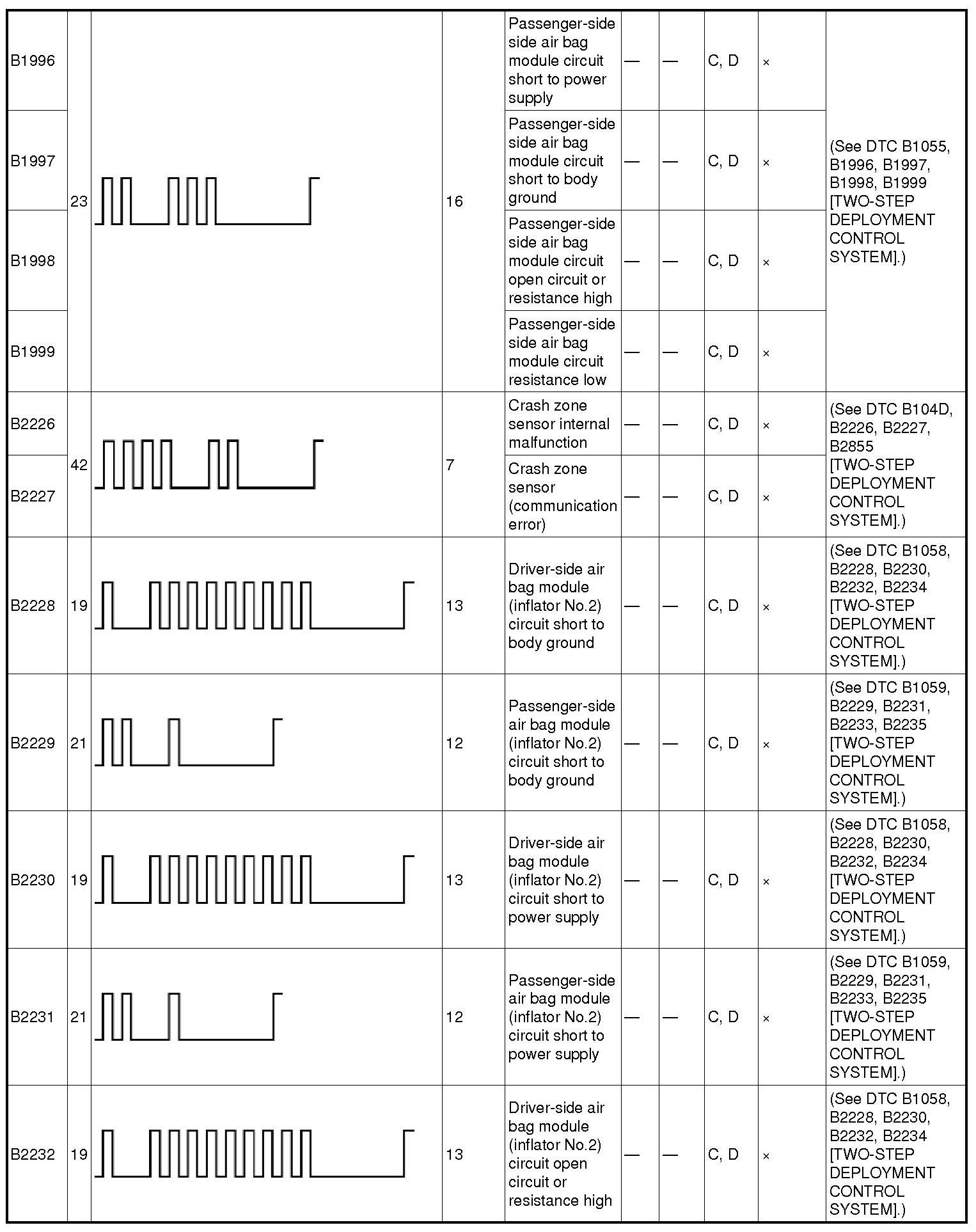

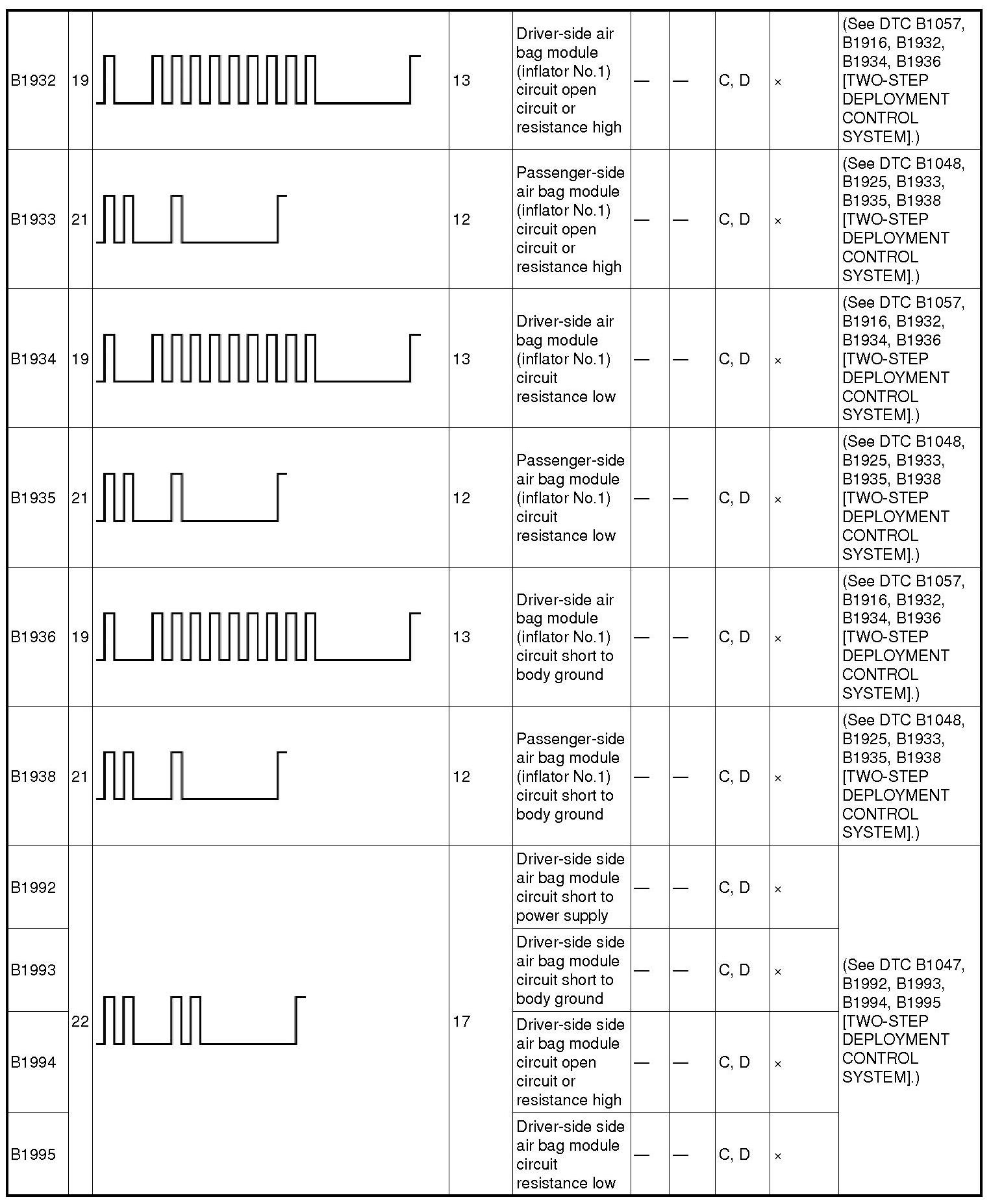

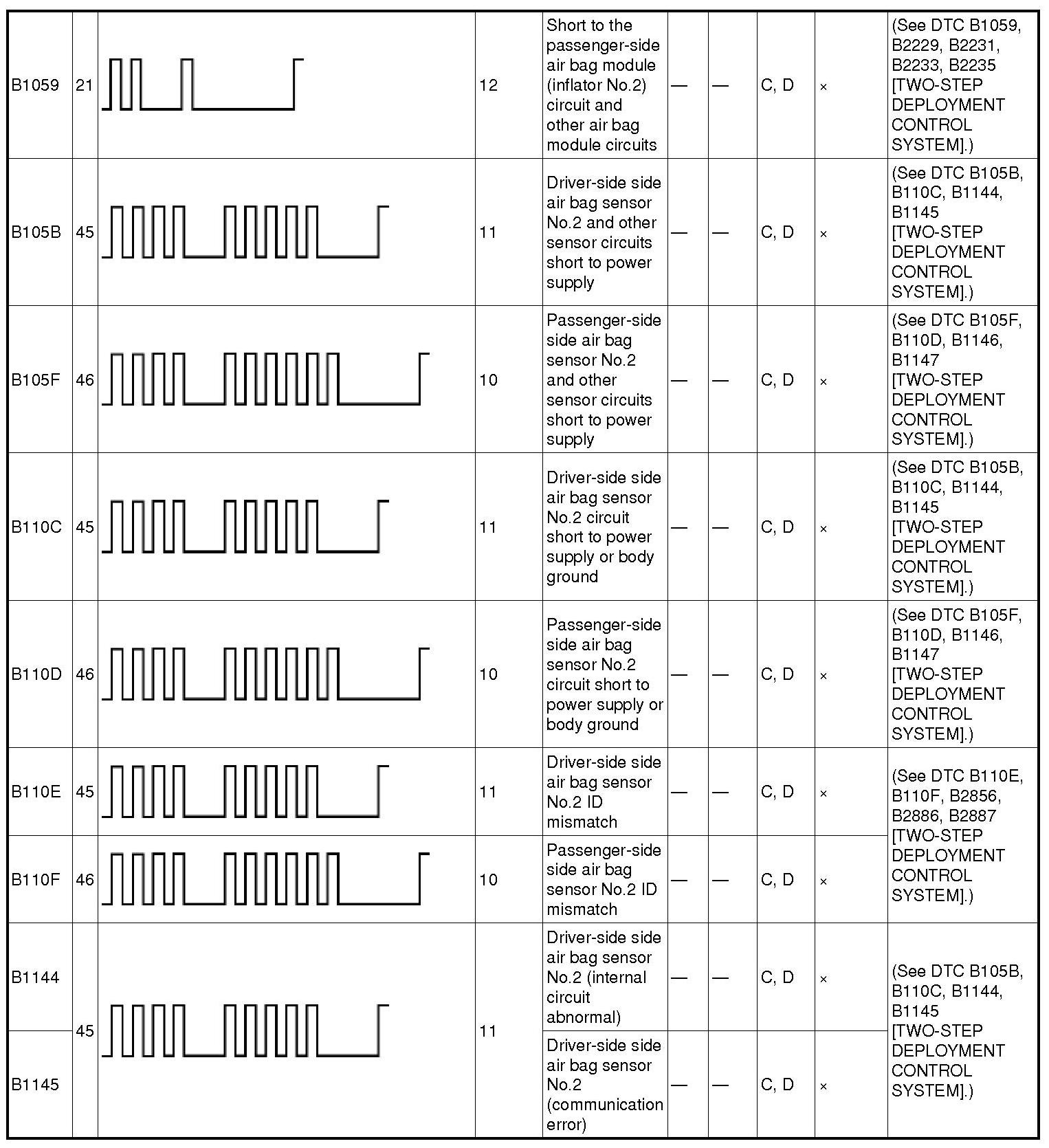

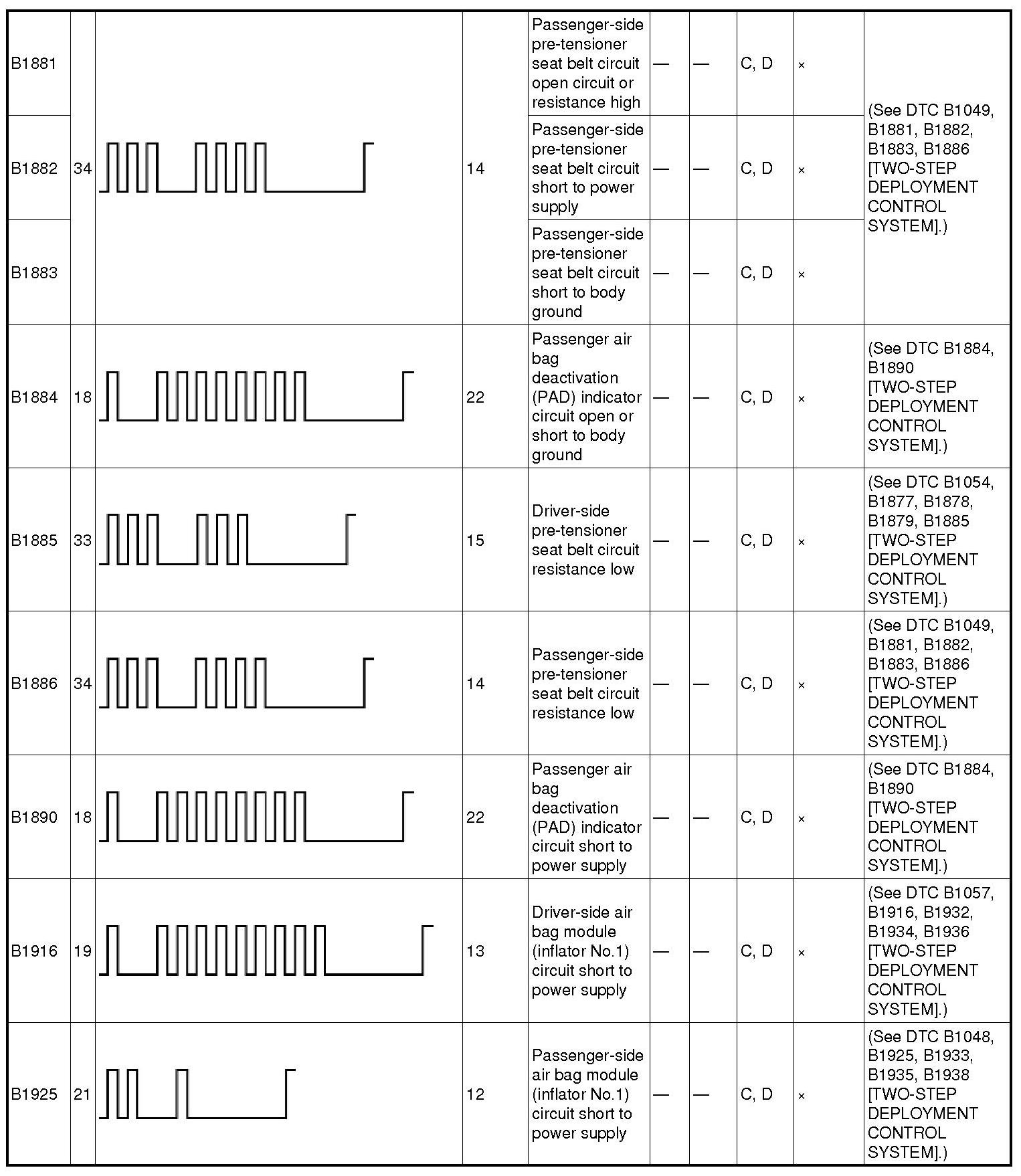

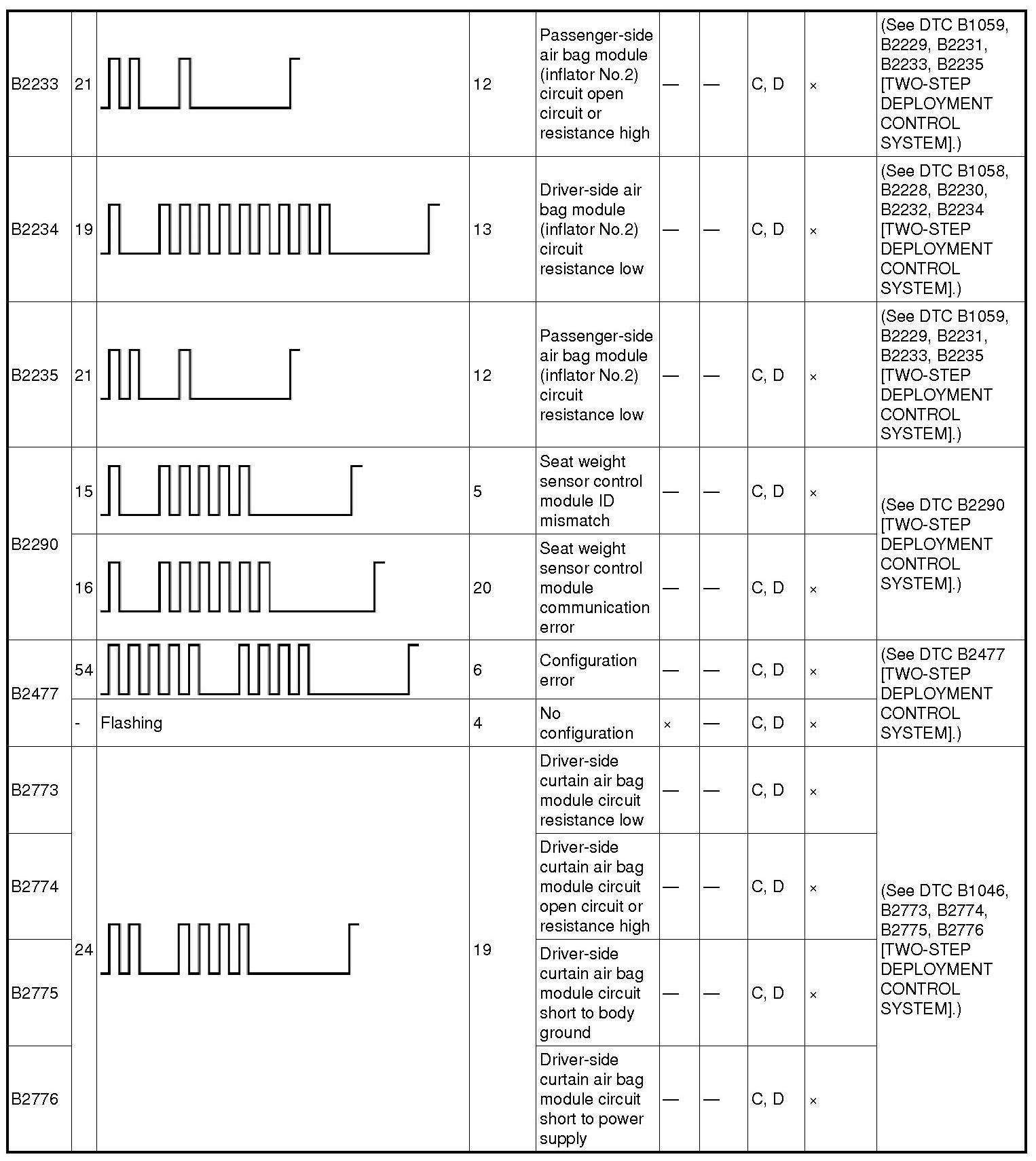

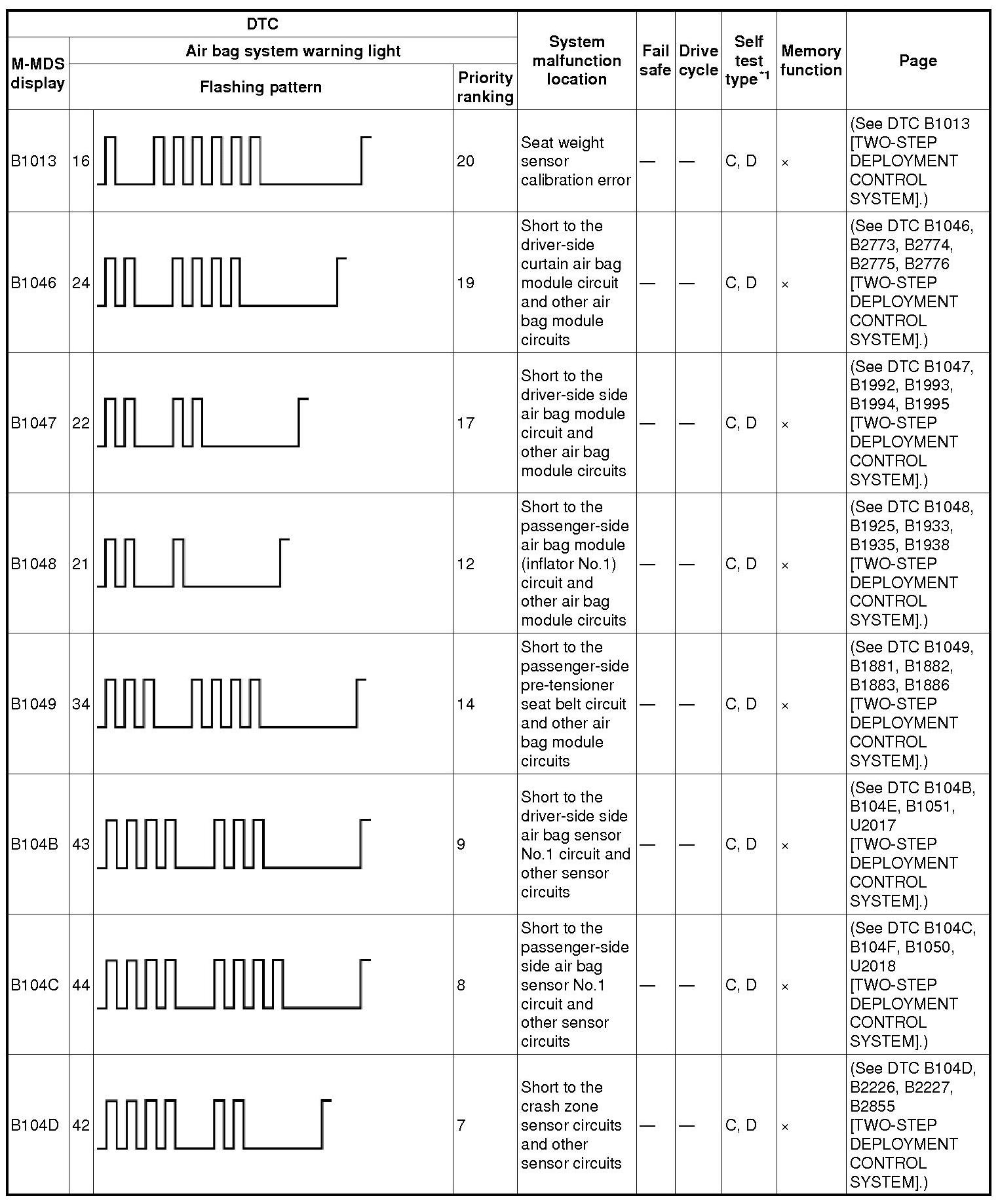

DTC TABLE [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

CAUTION:
- When DTCs not shown in the DTC table are displayed, perform the inspection for DTCs not shown in the DTC table.

Cross (x): Displayed









































*1
C: CMDTC self test, D: ODDTC self test

Inspection for DTCs not shown in DTC table

System wiring diagram

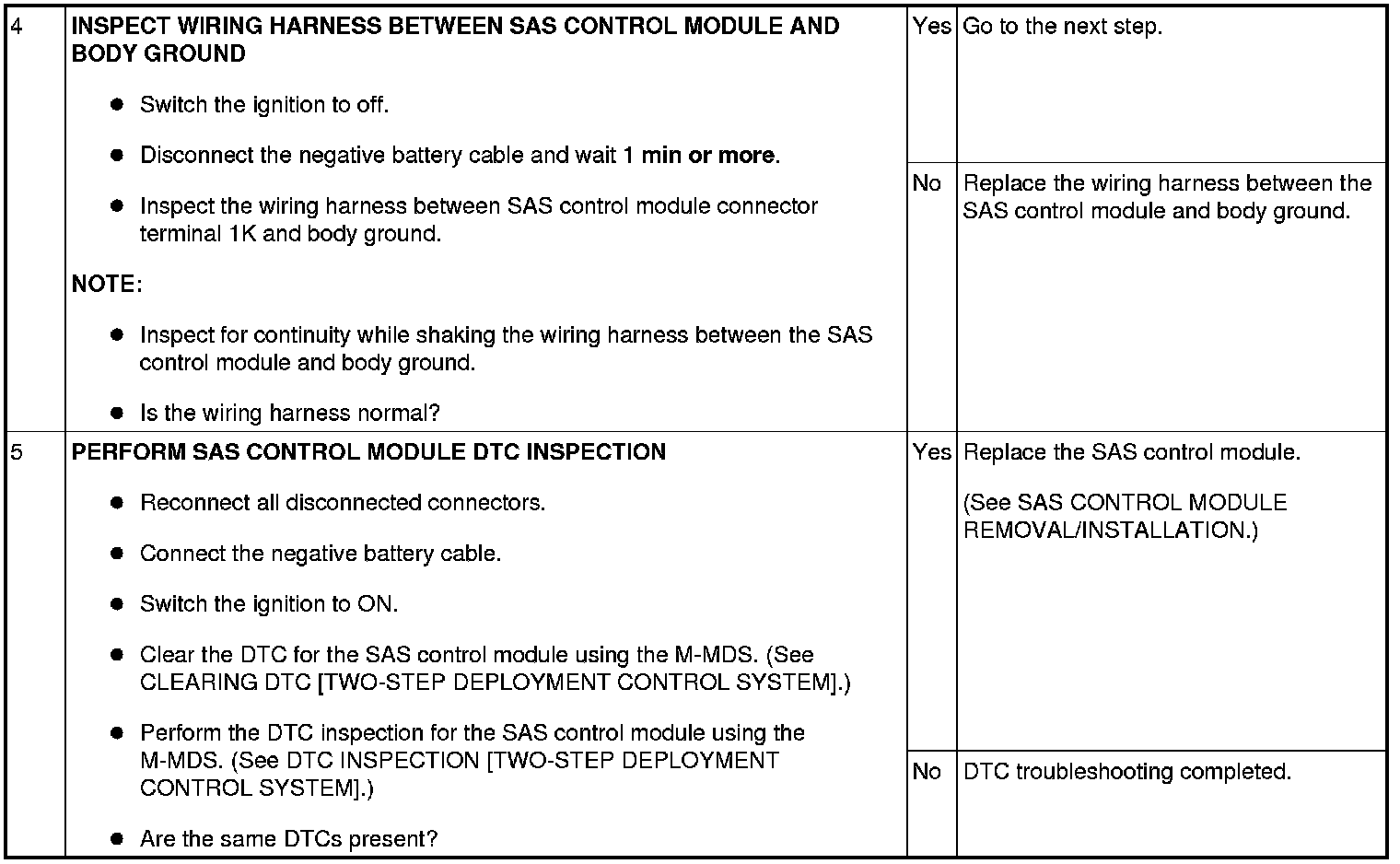

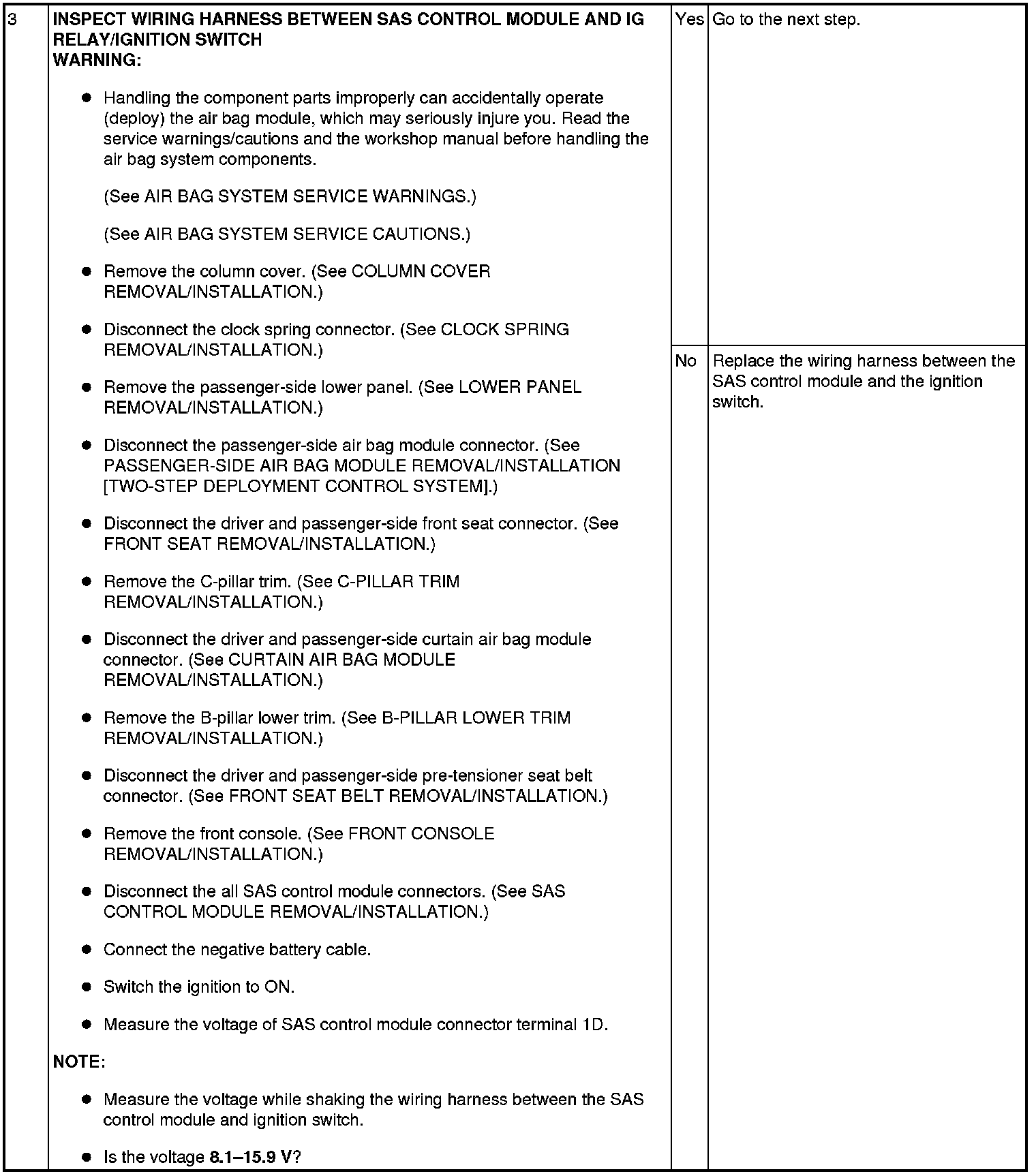

Diagnostic procedure
