Front

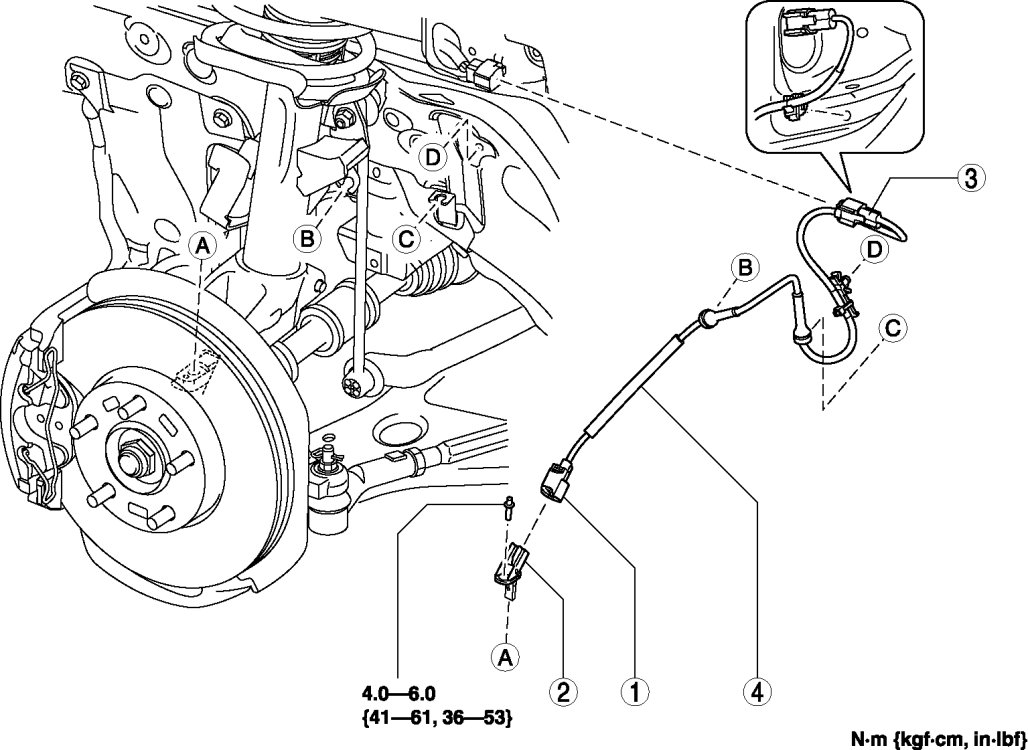

FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. After installation, verify that there is no twisting in the front ABS wheel-speed sensor.









Connector Removal Note

1. Pull aside the mudguard and disconnect the connector.
