Ambient Temperature Sensor / Switch HVAC: Service and Repair

AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the aerodynamic under cover. Service and Repair

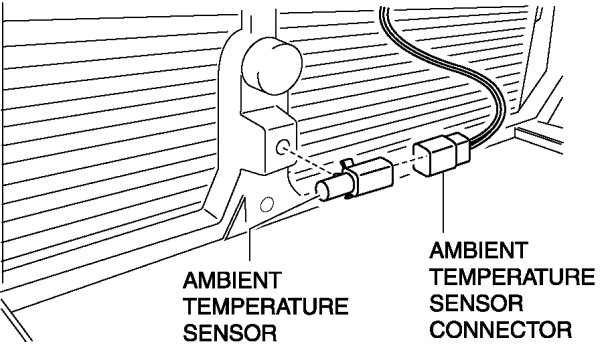

3. Disconnect the ambient temperature sensor connector.






4. Remove the ambient temperature sensor.

5. Install in the reverse order of removal.
