Headlamp Alignment Switch: Service and Repair

HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Driver-side front scuff plate Front Scuff Plate Removal/Installation

b. Driver-side front side trim Front Side Trim Removal/Installation

c. Side wall Side Wall Removal/Installation

d. Center console box Center Console Box Removal/Installation

e. Console panel Console Panel Removal/Installation

f. Center console Center Console Removal/Installation

g. Shift lever knob (MTX) Service and Repair

h. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

i. Shift panel Shift Panel Removal/Installation

j. Front console Front Console Removal/Installation

k. Hood release lever Service and Repair

l. Driver-side lower panel Lower Panel Removal/Installation

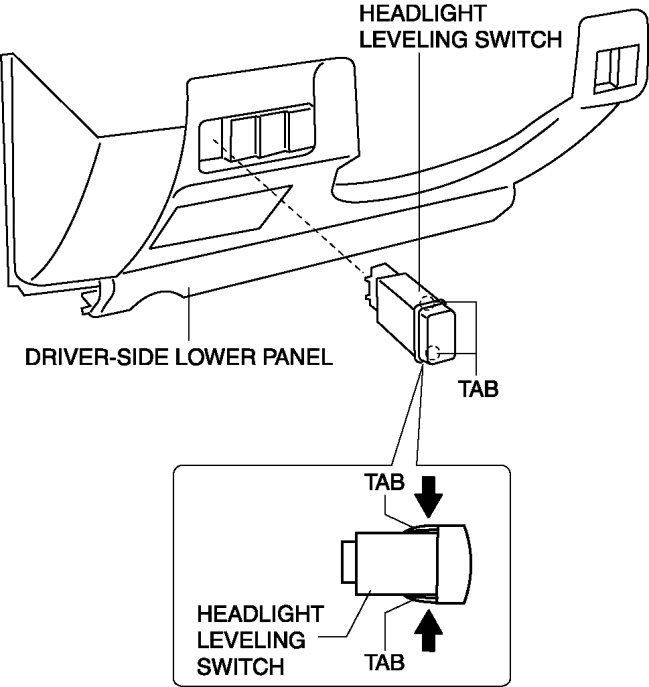

3. Release the tabs in the direction of arrow shown in the figure.






4. Remove the headlight leveling switch.

5. Install in the reverse order of removal.
