Seat Occupant Classification Module - Air Bag: Service and Repair

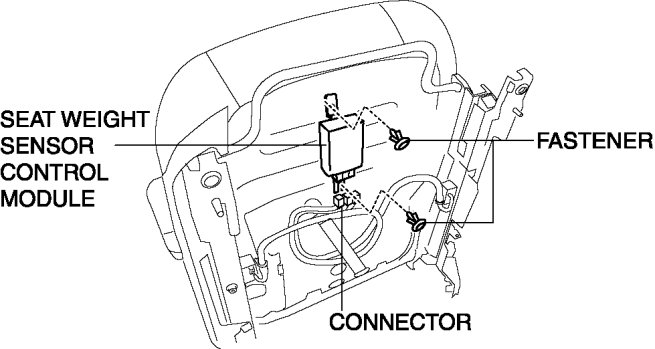

SEAT WEIGHT SENSOR CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

CAUTION:
- When the seat weight sensor control module is replaced with a new one, perform the seat weight sensor calibration using the M-MDS. Programming and Relearning

1. Switch the ignition to off.

2. Disconnect the negative battery cable and wait for 1 min or more.

3. Remove the connector.






4. Remove the fastener.

5. Remove the seat weight sensor control module.

6. Install in the reverse order of removal.
