Auxiliary Power Outlet: Service and Repair

ACCESSORY SOCKET REMOVAL/INSTALLATION

Front

1. Disconnect the negative battery cable.

2. Remove the center console box. Center Console Box Removal/Installation

3. Remove the console panel. Console Panel Removal/Installation

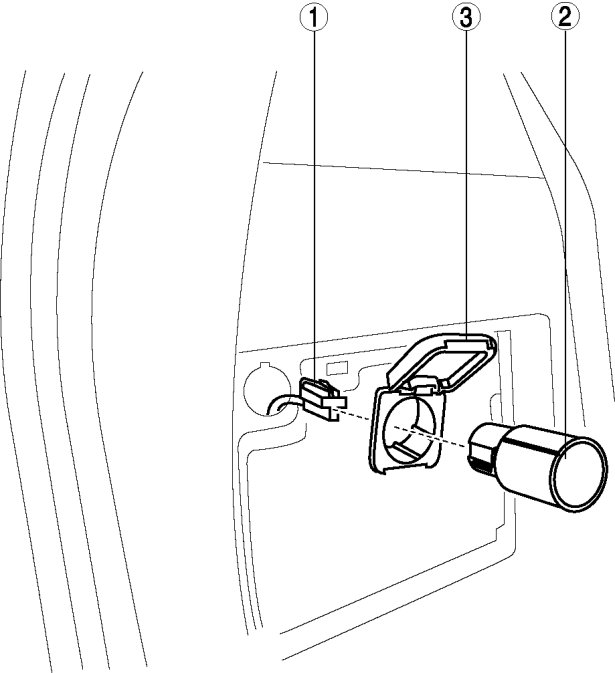

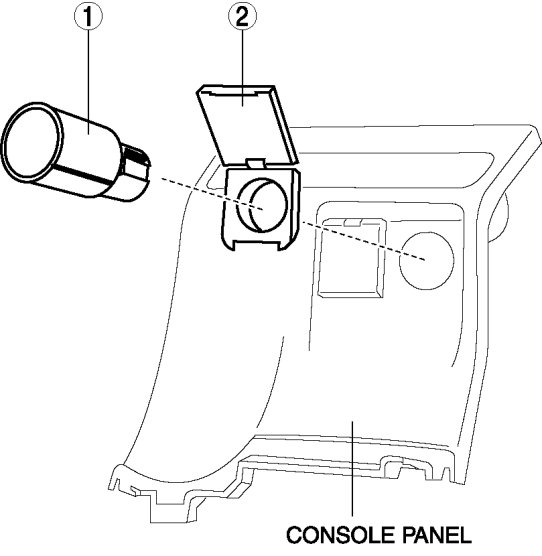

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

Rear

1. Disconnect the negative battery cable.

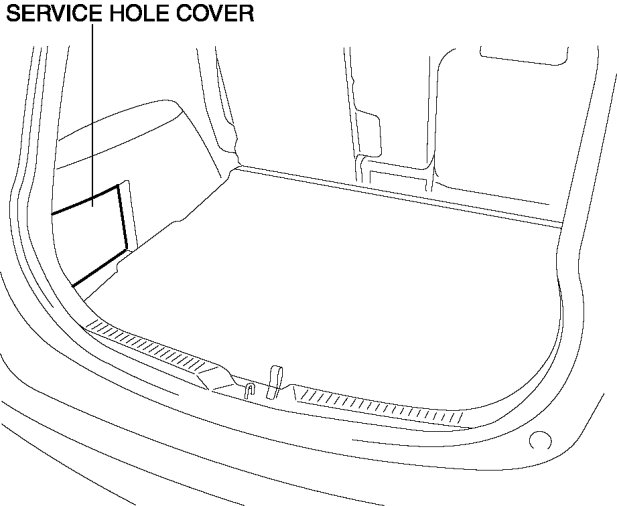

2. Remove the service hole cover.






3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

Socket Removal Note

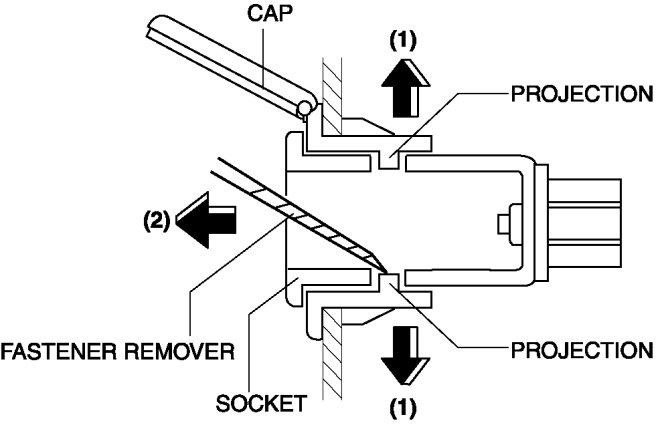

1. Remove the socket in the direction of arrow (2) shown in the figure while opening the cap in the direction of arrow (1) using a tape-wrapped fastener remover.






Cap Removal Note

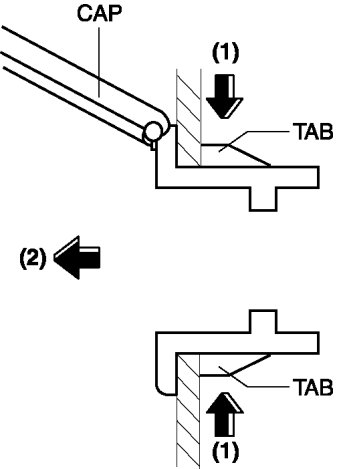

1. Remove the cap in the direction of the arrow (2) shown in the figure while pressing the cap tabs in the direction of the arrow (1).
