Windshield Washer Motor: Testing and Inspection

WASHER MOTOR INSPECTION

1. Disconnect the negative battery cable.

2. Remove the front mudguard (RH). Mudguard Removal/Installation

3. Disconnect the washer motor connector.

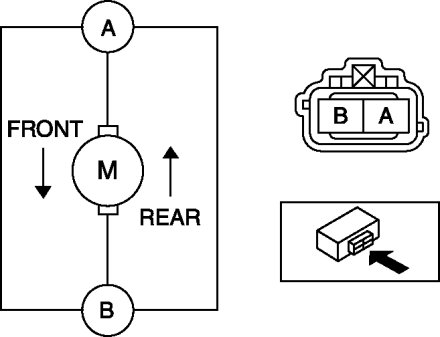

4. After connecting washer motor terminal A to the positive battery terminal, and terminal B to the negative battery terminal, verify that washer fluid flows to the windshield washer hose.






- If there is any malfunction, replace the washer motor. Service and Repair

5. After connecting washer motor terminal B to the positive battery terminal, and terminal A to the negative battery terminal, verify that washer fluid flows to the rear washer hose.

- If there is any malfunction, replace the washer motor. Service and Repair
