Center Console Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

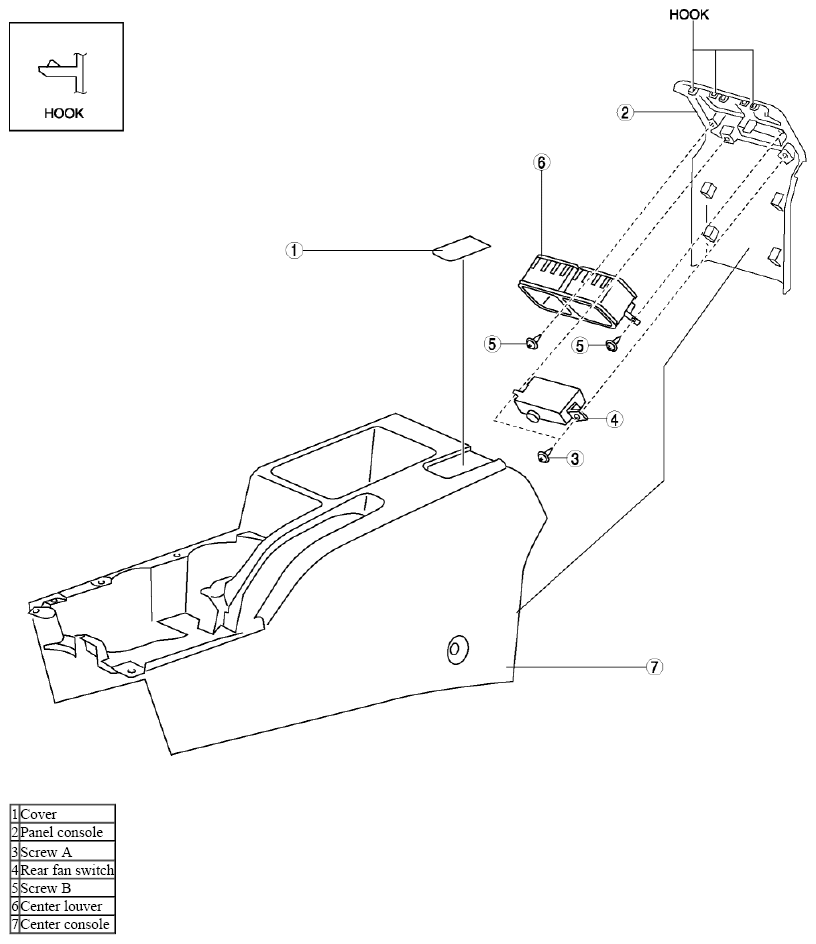

    Fig 1: Identifying Center Console Related Components
    G08153262
  2. Assemble in the reverse order of disassembly.
