Liftgate Recess Removal/Installation

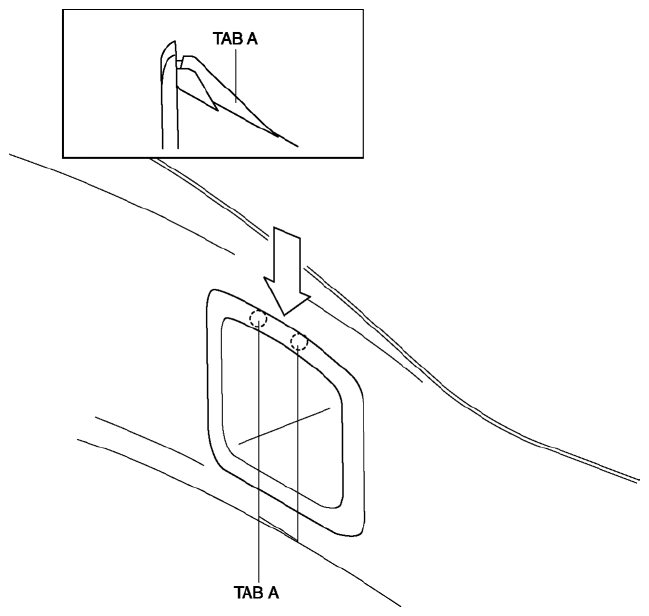

  1. Insert a fastener remover in the position indicated by the arrow in the figure and detach tabs A.
    Fig 1: Identifying Liftgate Recess Tabs A
    G08153246
  2. Remove the liftgate recess in the direction of the arrow shown in the figure detaching the tabs B.
    Fig 2: Removing Liftgate Recess With Tabs B
    G08153247
  3. Install in the reverse order of removal.
