Clock Spring Connector End View - Two-Step Deployment Control System

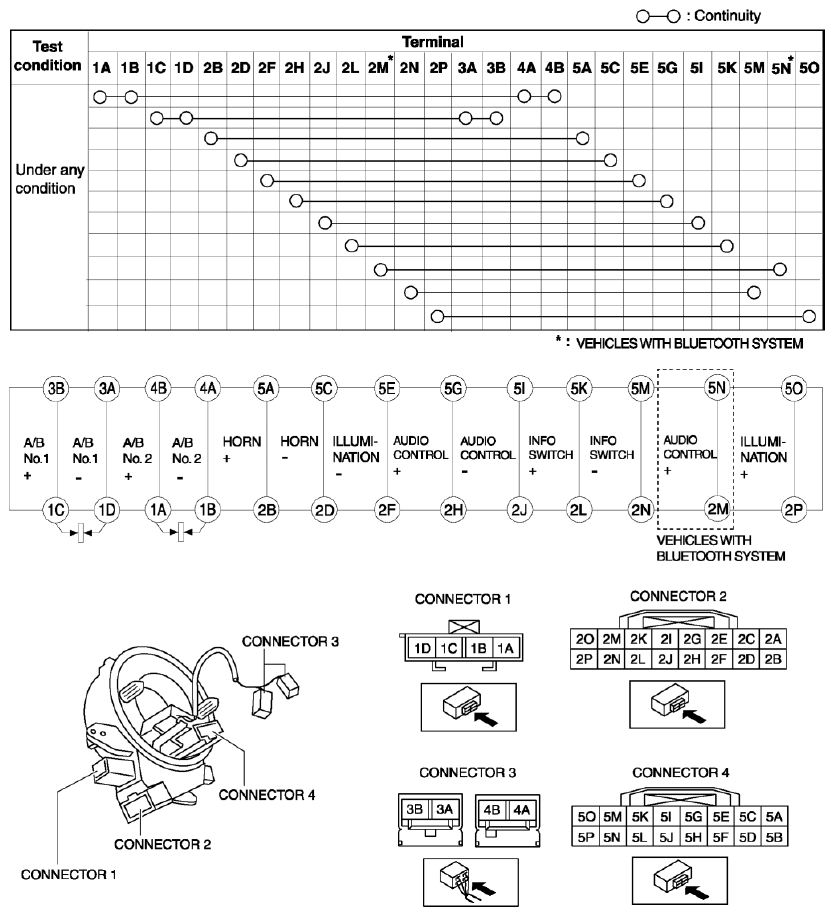

Fig 1: Clock Spring Connector End View - Two-Step Deployment Control System
G08152448Courtesy of MAZDA MOTORS CORP.
