Socket Removal Note

  1. Remove the socket in the direction of arrow (2) shown in the figure while opening the cap in the direction of arrow (1) using a tape-wrapped fastener remover.

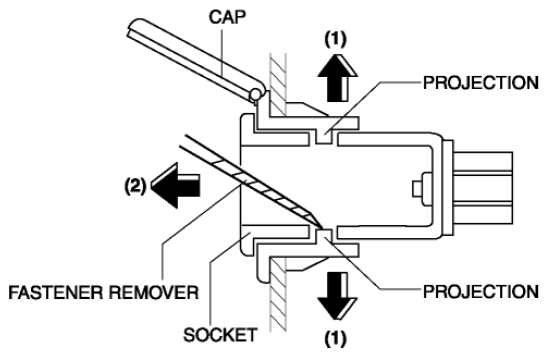

    Fig 1: Identifying Socket Removing Direction And Cap Opening Direction
    G08153488
