Trip Computer: Service and Repair

INFO SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (Driver side) Front Scuff Plate Removal/Installation

b. Front side trim (Driver side) Front Side Trim Removal/Installation

c. Upper panel Upper Panel Removal/Installation

d. Decoration panel (Driver side) Decoration Panel Removal/Installation

e. Hood release lever Service and Repair

f. Meter hood Meter Hood Removal/Installation

g. Lower panel (Driver side) Lower Panel Removal/Installation

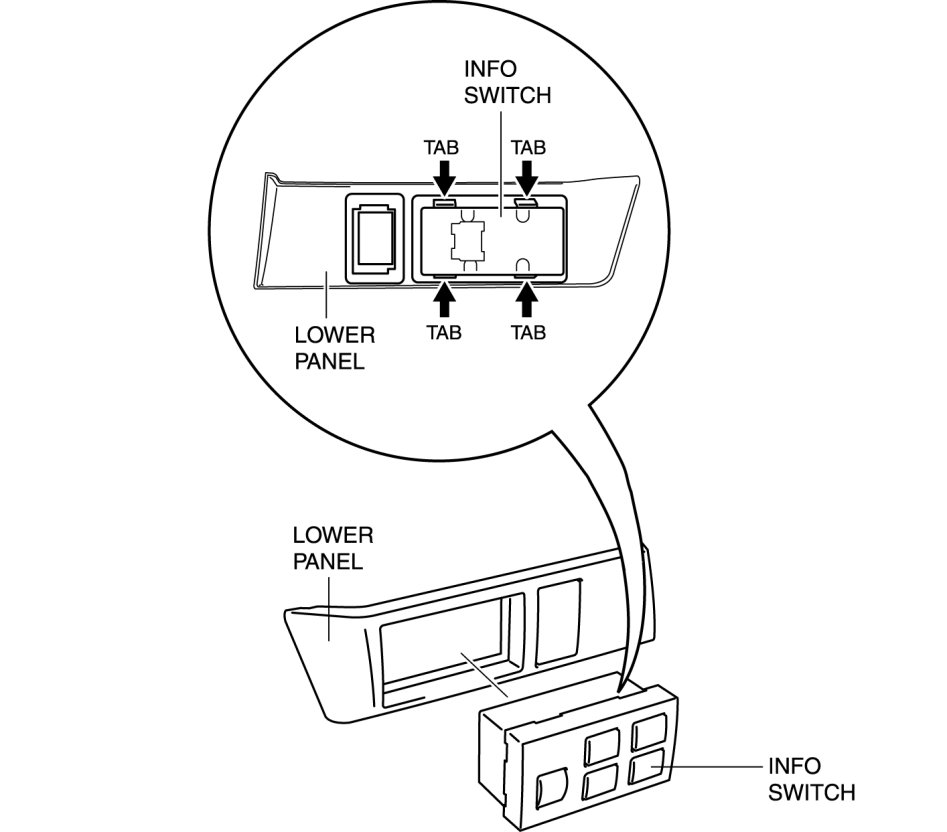

3. Remove the INFO switch.






4. Install in the reverse order of removal.
