Auxiliary Power Outlet: Testing and Inspection

ACCESSORY SOCKET INSPECTION

Front

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Decoration panel Decoration Panel Removal/Installation

c. Shift knob (MTX) Service and Repair

d. Shift panel Shift Panel Removal/Installation

e. Center panel lower Center Panel Lower Removal/Installation

f. Accessory socket (Front) Service and Repair

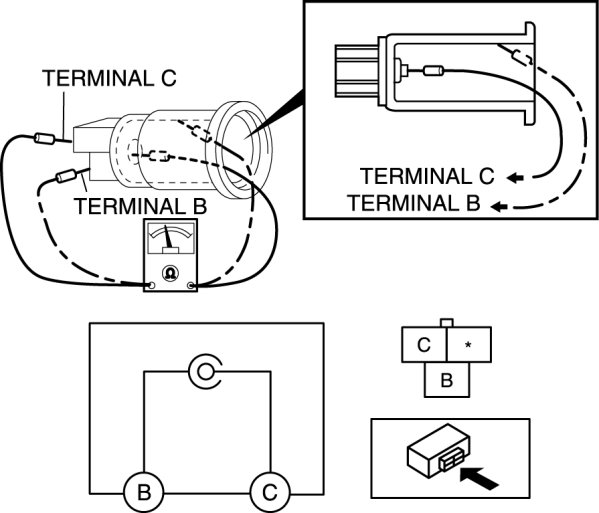

3. Connect a tester as shown in the figure and verify that there is continuity.






- If the continuity cannot be verified, replace the accessory socket (Front).

Rear

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Shift knob (MTX) Service and Repair

c. Shift panel Shift Panel Removal/Installation

d. Decoration panel (See Decoration Panel Removal/Installation.)

e. Center panel lower Center Panel Lower Removal/Installation

f. Rear console Overhaul

g. Accessory socket (Rear) Service and Repair

3. Connect a tester as shown in the figure and verify that there is continuity.






- If the continuity cannot be verified, replace the accessory socket (Rear).
