Input/Turbine Speed Sensor Inspection

INPUT/TURBINE SPEED SENSOR INSPECTION [FS5A-EL]

CAUTION:
- Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

On-Vehicle Inspection

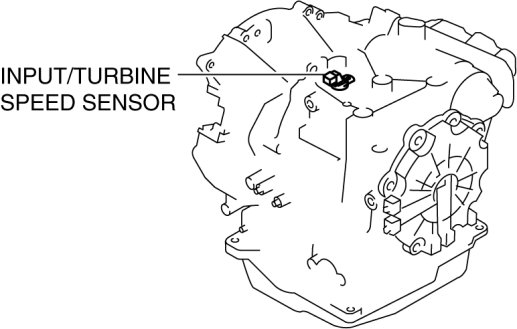

1. Disconnect the input/turbine speed sensor connector.
a. Disconnect the negative battery cable.

b. Remove the air cleaner component. Service and Repair

c. Disconnect the input/turbine speed sensor connector.

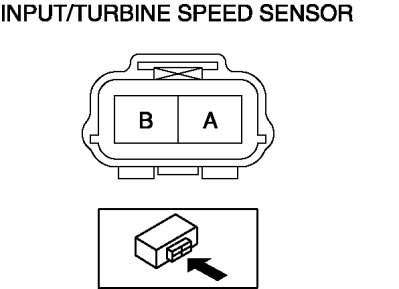

2. Measure the resistance between input/turbine speed sensor terminals A and B.






- If there is any malfunction, replace the input/turbine speed sensor. Input/Turbine Speed Sensor Removal/Installation

Input/turbine speed sensor specification
- 250-600 ohms

Off-Vehicle Inspection

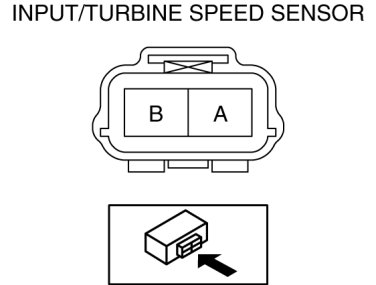

1. Measure the resistance between input/turbine speed sensor terminals A and B.






- If there is any malfunction, replace the input/turbine speed sensor.

Input/turbine speed sensor specification
- 250-600 ohms
