Seat Temperature Switch: Service and Repair

SEAT WARMER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the upper panel. Upper Panel Removal/Installation

3. Remove the decoration panel. Decoration Panel Removal/Installation

4. Remove the center panel lower. Center Panel Lower Removal/Installation

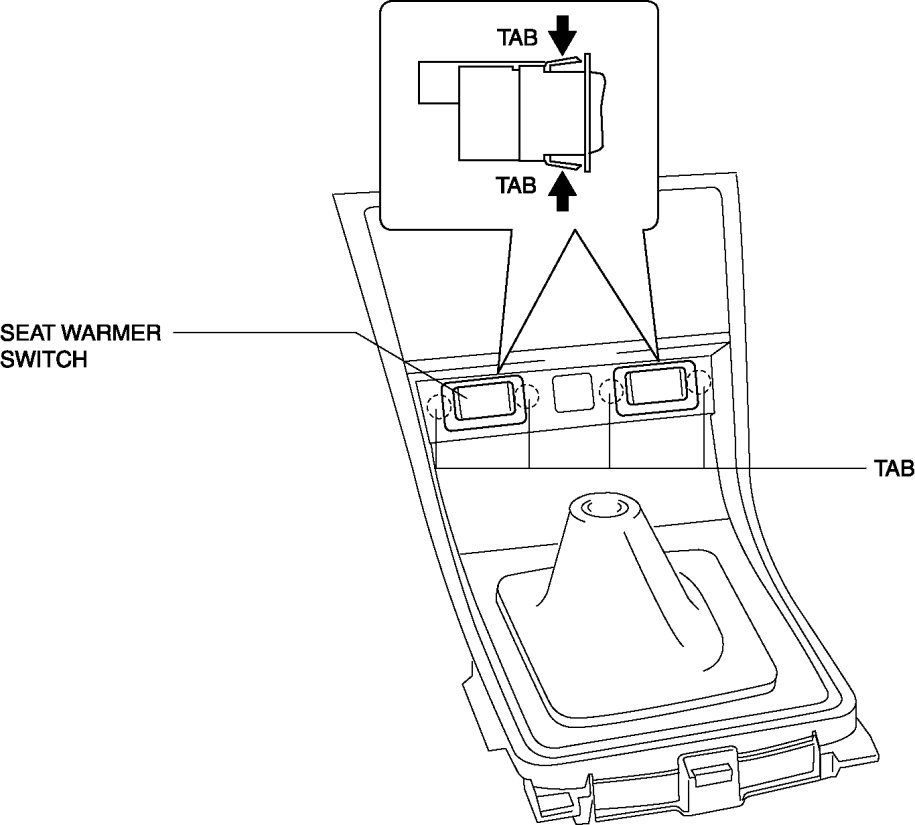

5. Squeeze the tabs of seat warmer switch and pull it outward to remove it.






6. Remove the seat warmer switch.

7. Install in the reverse order of removal.
