Blower Motor Resistor: Service and Repair

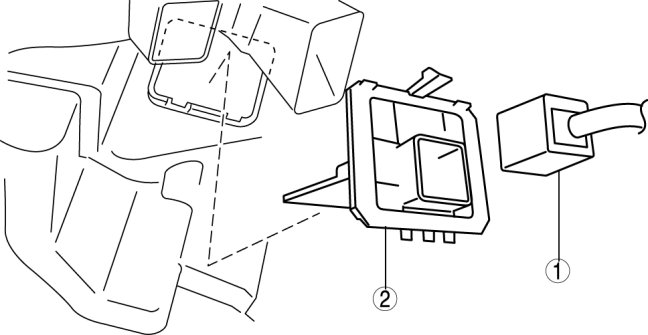

RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.

Resistor Removal Note

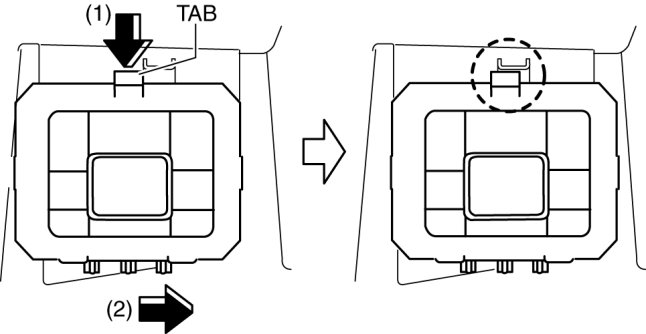

1. Push the tab then slide the resistor in the direction of the arrows shown in the figure.






2. Pull the resistor outward.
