Clock Spring And SAS Control Module Connector End View

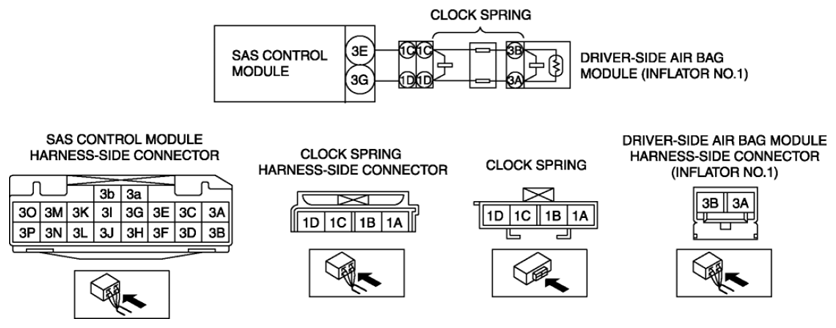

Fig 1: Clock Spring And SAS Control Module Connector End View
G08143733Courtesy of MAZDA MOTORS CORP.
