Blind Spot Monitoring (BSM) Control Module Removal/Installation
CAUTION:
- If the BSM control modules are installed with the left and right modules reversed, a DTC will be displayed and system will enter the fail-safe function. Therefore, confirm that the left/right BSM control modules are installed correctly.
- Disconnect the negative battery cable.
- Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
- Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION .)

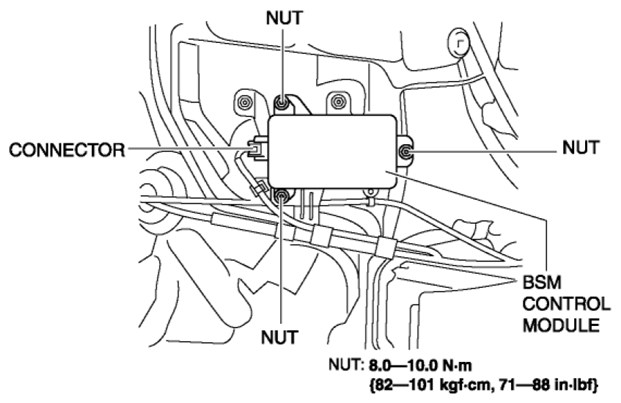

- Disconnect the connector.
- Remove the nuts.
- Remove the BSM control module.
- Install in the reverse order of removal.
- Perform the blind spot monitoring radar test. (See BLIND SPOT MONITORING (BSM) RADAR TEST .)
