Connector Terminal Inspection Method

  1. Inspect the connection of each female terminal.
  2. Insert the terminal to the female terminal and inspect the female terminal for looseness.

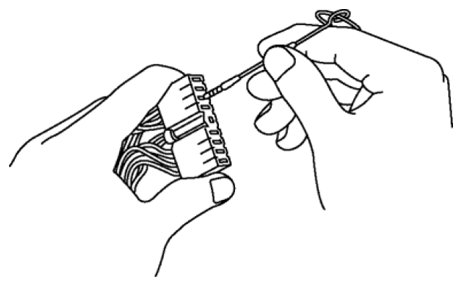

    Fig 1: Inspecting Female Terminal For Looseness
    G08144170
