Inspection Method For Switch and/or Sensor Connectors or Wires
- Connect the M-MDS (IDS) to the DLC-2.
- Switch the ignition to ON. (engine off)NOTE:
- If the engine starts and runs, perform the following steps at idle.
- Access PIDs for the switch you are inspecting.
- Turn the switch on manually.

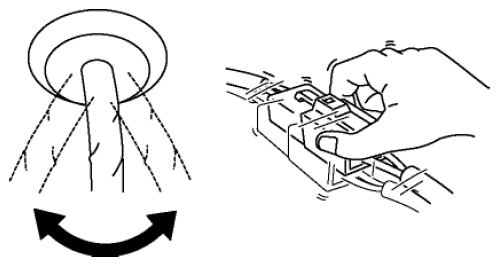

- Slightly shake each connector or wiring harness vertically and horizontally while monitoring the PID.
- If the PID value unstable, inspect for poor connection.
