Power Window Subswitch

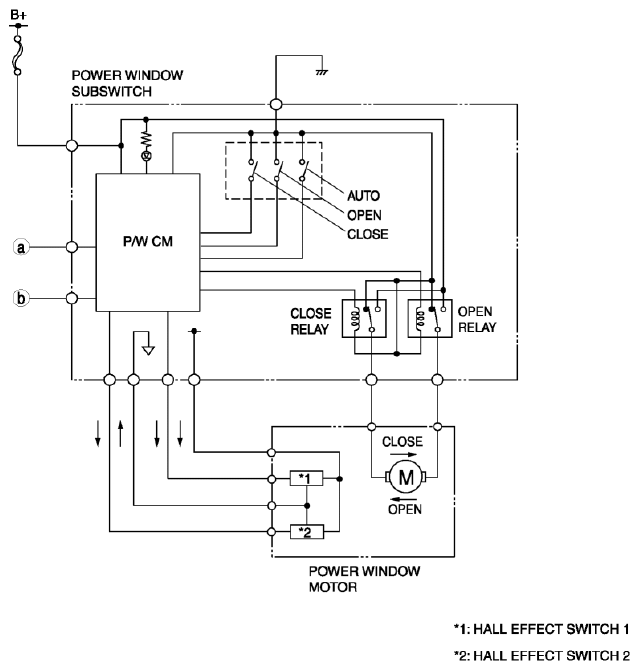

Fig 1: Power Window System Wiring Diagram - Power Window Subswitch (Auto-Open/Close Function)
