NOT P Position Switch Inspection

CAUTION:
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  1. Disconnect the selector lever component connector.
    1. Disconnect the negative battery cable.
    2. Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION .)
    3. Disconnect the selector lever component connector.

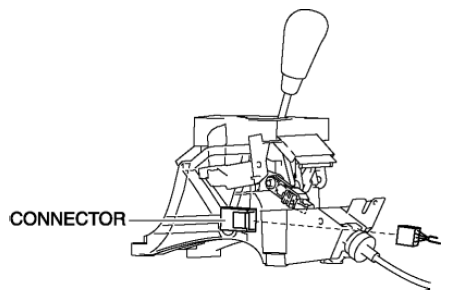

      Fig 1: Identifying Selector Lever Component Connector
      G08143342
  2. Measure the continuity between selector lever component terminals G and K.
    Fig 2: Identifying Selector Lever Component Connector Terminals G And K
    G08143343
    CONTINUITY SPECIFICATION

    Test condition Continuity
    P position No continuity
    Except P position Continuity
