No.1 Additional Key Programming Procedure (Using the M-MDS): Procedure

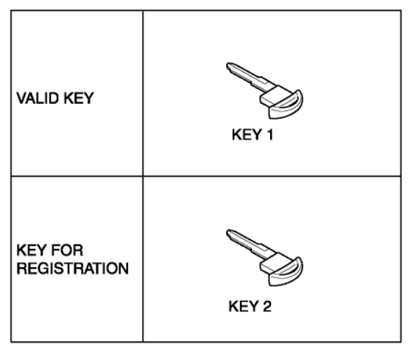

Fig 1: Identifying Valid Keys

Step	Procedure	Action after procedure
1	VERIFY THAT KEY 1 ARE VALID Start the engine using key 1. CAUTION: Do not place the advanced key in the vehicle when starting the engine with key 1. Verify that the security light illuminates for approx. 3 s , and then turns off. Switch the ignition off.	Go to the next step.
2	PERFORM ADDITIONAL KEY PROGRAMMING Connect the M-MDS (IDS) to the DLC-2. (See M-MDS CONNECTING PROCEDURE ) Insert key 1 into the key slot and depress the clutch. NOTE: The keyless indicator light (green) illuminates for approx. 5 s, then turns off. After verifying that the keyless indicator light (green) has illuminated, release the clutch within approx. 5 s and switch the ignition from off→ACC→ON. Pull out key 1 from the key slot and insert key 2 into the slot. NOTE: When key 1 is pulled out of the key slot, the advanced key system warning alarm sounds and the keyless indicator light (red) begins flashing, however continue with the procedure. After the vehicle is identified, select the following items from the initial screen of the M-MDS. When using the IDS (laptop PC): Select the "Body" Select the "Security" Select the "PATS Functions" Then, select an item from the screen menu. item Program Additional Ignition Key Perform the security access according to the directions on the M-MDS screen. NOTE: After executing the above menu, "This operation is successful" is displayed. This indicates that the programming of the key that currently has the ignition switched on is completed. If an additional key is to be programmed, continue to perform the procedure according to the directions on the M-MDS screen. To finish the key programming, go to the next step.	Yes	Change the key and repeat Step 2.
2		No	Go to the next step.
3	CLOSE THE M-MDS After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Finish (this menu)". Switch the ignition off	Go to the next step.
4	VERIFY THAT ANY KEY IS PROGRAMMED Verify that the engine can be started with the programmed key. NOTE: When verifying that the engine starts, wait at least approx. 5 s or more before starting the engine using the next key.	Procedure is completed
