Advanced Keyless Entry And Push Button Start System

  1. Connect the M-MDS (IDS) to the DLC-2.

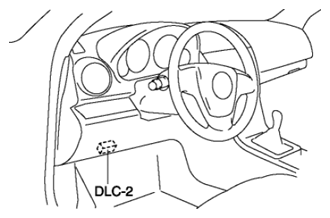

    Fig 1: Identifying DLC-2 Location
    G08144623
  2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
    • When using the IDS (laptop PC)
      • Select the "Module Programming"
      • Select "Programmable Parameters"
      • Select menu in the "RKE"
  3. Select an item name, and then select option.
    Mazda Modular Diagnostic System (M-MDS) display Function Initial setting Setting content Control unit
    Advanced Keyless Function Advanced keyless entry and push button start system function can be set to inoperable. Enabled Disabled/Enabled Keyless control module
    Locking and unlocking type Locking and unlocking type can be changed. Type 2 Type 1(1)/Type 2(2)/Type 3(3)/Type 4(4) Keyless control module
    Prevention Function of Key Containment in Trunk or Liftgate Key-left-in-trunk prevention function can be set. Disabled Disabled/Enabled Keyless control module
    Auto Lock Auto lock function can be set. Disabled Disabled/Enabled Keyless control module
    Advanced Key Battery Low Warning Advanced key remaining battery level/battery dead warning can be set. Enabled Disabled/Enabled Keyless control module
    Answer Back Buzzer Volume Volume adjustment of the answer back buzzer can be set. 10 Disabled/5-10 Keyless control module
    Warning Buzzer Volume Volume adjustment of the warning buzzer can be set. 10 5-10 Keyless control module
    (1) Type 1

    Drivers-side touch sensor: Unlock drivers-side door only.
    Drivers-side button: 2-stage unlocking/locking all doors.
    Drivers-side touch sensor and button combination: 2-stage door unlocking.
    Passengers-side touch sensor: Unlocking all doors.
    Passengers-side button: Locking and unlocking all doors.
    (2) Type 2

    Drivers-side touch sensor: Unlock drivers-side door only.
    Drivers-side button: Locking doors only.
    Passengers-side touch sensor: Unlocking all doors.
    Passengers-side button: Locking doors only.
    (3) Type 3

    Drivers-side touch sensor: Unlocking all doors.
    Drivers-side button: Locking all doors only.
    Passengers-side touch sensor: Unlocking all doors.
    Passengers-side button: Locking all doors only.
    (4) Type 4

    Drivers-side touch sensor: Disabled.
    Drivers-side button: 2-stage unlocking/locking all doors.
    Passengers-side touch sensor: Disabled.
    Passengers-side button: Unlocking/locking all doors.
