| 1 |

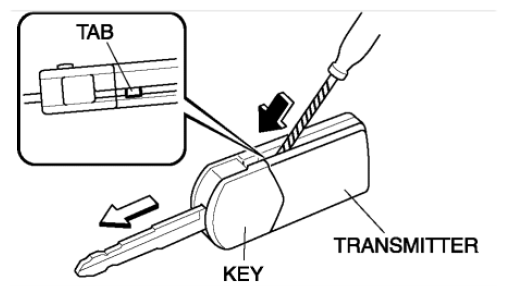

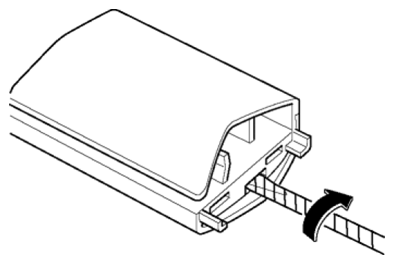

Disconnecting key from transmitter
- Insert a flathead screwdriver into the transmitter notch and remove the key from the transmitter by pressing the tab.
|
Go to the next step. |
|
|
| 2 |

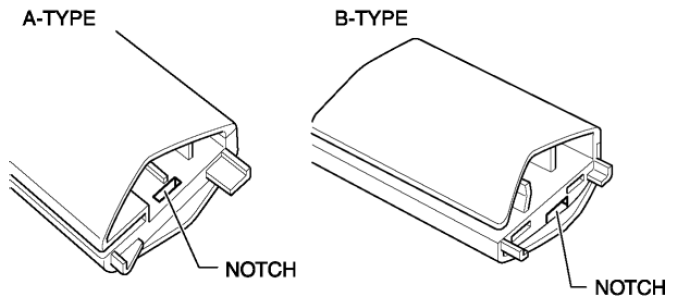

Notch position verification
- Verify the position of the transmitter notch.
|
- For the A-type notch, go to Step 3.
- For the B-type notch, go to Step 6.
|
|
|
| 3 |

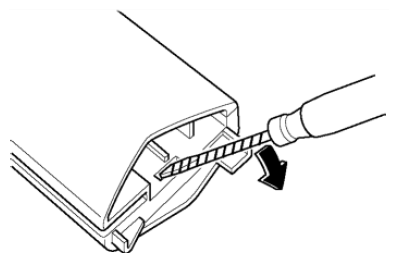

Opening transmitter
- Insert a flathead screwdriver into the transmitter notch and open the transmitter.
|
Go to the next step. |
|
|
| 4 |

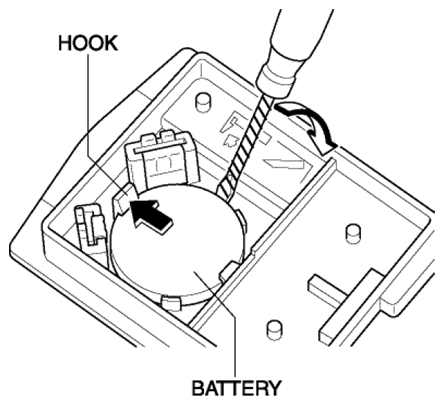

Battery removal
- Press the hook in the direction of the arrow and remove the battery using the flathead screwdriver.
|
Go to the next step. |
|
|
| 5 |

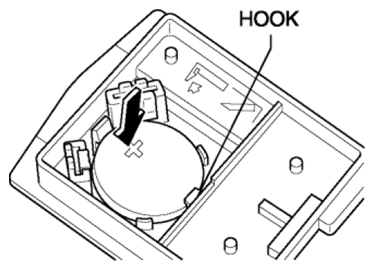

Battery installation
- Install the new battery (CR1620) with the positive (+) pole facing up.
|
Go to Step 9. |
|
|
| 6 |
Opening transmitter
- Insert a flathead screwdriver into the transmitter notch and open the transmitter.
|
Go to the next step. |
|
|
| 7 |

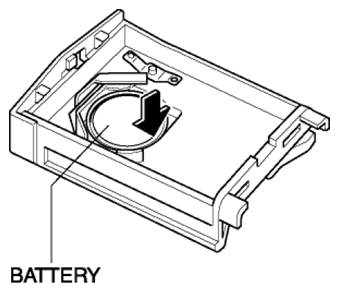

Battery removal
- Remove the battery by pressing it in the direction of the arrow shown in the figure.
|
Go to the next step. |
|
|
| 8 |

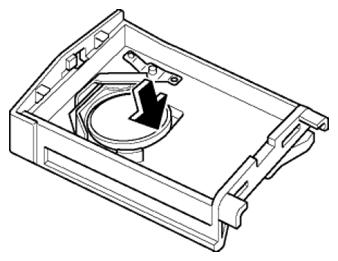

Battery installation
- Install the new battery (CR1620) with the plus pole facing down.
|
Go to the next step. |
|
|
| 9 |
Cover installation
- Align the upper and lower covers and close the transmitter.
- Install the key to the transmitter.
|
Go to the next step. |
| 10 |

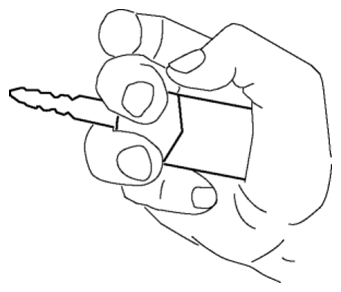

Verification of key and transmitter connection
- When connecting the key to the transmitter, grip the key and the transmitter as shown in the figure and connect until a click sound is heard.
NOTE:
- If the key is not completely connected to the transmitter, they may come apart.
|
Procedure is completed |
|
|
